B265C-LH-BL2 - Airmar B265C-LH Bronze TH Low/High CHIRP With Navico 7-Pin Y-Cable

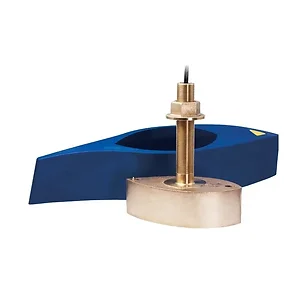

Airmar B265C-LH Bronze Thru Hull with Navico Blue 7-Pin Mix-N-Match Y-Cable

• Depth and fast-response water-temperature sensing
• 1 kW of power for great deep-water performance
• Low frequency: 42 to 65 kHz, 25° to 16° beamwidth, Maximum depth of 914 m (3000')
• High frequency: 130 to 210 kHz, 10° to 6° beamwidth, Maximum depth of 304 m (1000')
• 103 kHz of total bandwidth from one transducer
• Covers popular fishing frequencies of 50 and 200 kHz plus everything else in the bandwidth
• Bronze housing with High-performance Fairing for optimal high-speed performance
• Patented Xducer ID® technology

We know that specific frequencies excel at detecting certain species of fish: Bluefin Tuna—60 kHz, squid—133 kHz, and cod—175 kHz. The B265LH transducer includes all these frequencies plus every other frequency in the high and low bandwidths. This powerhouse delivers excellent resolution, bottom discrimination, and bait and game-fish separation at all depths.

Airmar’s B265LH is packed with a seven-element, low-frequency array that operates between 42 and 65 kHz for excellent deep-water performance. The high-frequency ceramic operates between 130 and 210 kHz with a narrow, 10° to 6°, beam—perfect for picking apart structure and pinpointing tight-holding fish in structure.

The included High-performance Fairing improves broadband performance at speeds over 30 knots (34 MPH).

• B265C-LH-MM Transduer
• High Speed Fairing Block
• High Speed Fairing Block Bolt Kit
• MMC-BL2 Cable

The Airmar B265C-LH Bronze TH is a thru-hull, dual-band CHIRP transducer designed for marine applications requiring detailed depth and temperature data. This unit is suitable for commercial fishing vessels or advanced recreational users who need precise underwater imaging. It operates across a low-frequency range of 42 to 65 kHz, providing a maximum depth of 914 meters, and a high-frequency range of 130 to 210 kHz, with a maximum depth of 304 meters. The transducer delivers 1 kW of power, enhancing deep-water performance and target separation. Its bronze housing and included high-performance fairing are engineered to maintain broadband performance even at speeds exceeding 30 knots. The B265C-LH-BL2 includes a Navico Blue 7-Pin Mix-N-Match Y-Cable for integration with compatible systems. This transducer is intended for buyers who require comprehensive underwater data for navigation, fish finding, and detailed bottom discrimination.
