B265C-LM-12F - Airmar B265C-LM Bronze TH Low Medium CHIRP Furuno 12-Pin Mix-N-Match

Airmar B265C-LM Bronze thru Hull Low Medium CHIRP with Furuno 12-Pin Mix-N-Match Cable

• Depth and fast-response water-temperature sensing
• 1 kW of power for great deep to mid-depth performance
• Low frequency: 42 to 65 kHz - 25° to 16° beamwidth - Maximum depth of 914 m (3000')
• Medium frequency: 85 to 135 kHz - 16° to 11° beamwidth - Maximum depth of 457 m (1500')
• 73 kHz of total bandwidth from one transducer
• Covers popular fishing frequencies of 50, 88, and 107 kHz plus everything else in the bandwidths

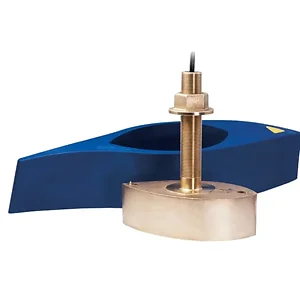

• Bronze housing with High-performance Fairing for optimal high-speed performance
• Patented Xducer ID® technology
• Hull Type: Fiberglass or wood
• Exclusive Xducer ID® technology

The B265LM, Chirp-ready thru-hull is a perfect, mid to deep-depth transducer. The huge bandwidth includes many of the most popular frequencies for targeting top gamefish. This 1 kW, powerhouse delivers clear target details, bottom discrimination, as well as bait and game-fish separation at all depths.

The low-frequency band, operating between 42 and 65 kHz, provides deep-water performance down to 914 m (3000'). It is a good choice when scouting an area or fishing in deeper depths. The medium-frequency band from 85 to 135 kHz is excellent for identifying targets suspended close to the bottom, on structure, and within the water column.

The included, High-performance Fairing improves broadband performance at speeds over 30 knots (34 MPH).

• B265C-LM-MM Transducer
• High Speed fairing Block
• High Speed Fairing Block Bolt Kit
• MMC-12F Cable

The Airmar B265C-LM-12F is a bronze thru-hull transducer designed for marine applications requiring depth and water temperature sensing. This unit operates with Low and Medium CHIRP frequencies, providing a total bandwidth of 73 kHz. It is suitable for fiberglass or wood hulls and is intended for IT and marine professionals managing vessel electronics. The transducer offers a 1 kW power rating, enabling deep to mid-depth performance. The low-frequency band (42-65 kHz) supports depths up to 914 m (3000'), while the medium-frequency band (85-135 kHz) reaches up to 457 m (1500'). It includes a high-performance fairing to maintain optimal broadband performance at speeds exceeding 30 knots. This product integrates Xducer ID technology and comes with a Furuno 12-Pin Mix-N-Match cable, making it a solution for detailed target and bottom discrimination.
