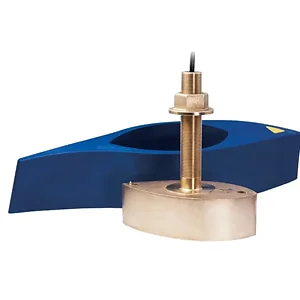

B265C-LM-11R - Airmar B265C-LM Bronze TH Low Medium CHIRP Raymarine 11-Pin Y-Cable

Airmar B265C-LM Bronze thru Hull Low Medium CHIRP with Raymarine 11-Pin Mix-N-Match Cable

• Depth and fast-response water-temperature sensing
• 1 kW of power for great deep to mid-depth performance
• Low frequency: 42 to 65 kHz - 25° to 16° beamwidth - Maximum depth of 914 m (3000')
• Medium frequency: 85 to 135 kHz - 16° to 11° beamwidth - Maximum depth of 457 m (1500')
• 73 kHz of total bandwidth from one transducer
• Covers popular fishing frequencies of 50, 88, and 107 kHz plus everything else in the bandwidths
• Bronze housing with High-performance Fairing for optimal high-speed performance
• Patented Xducer ID® technology
• Hull Type: Fiberglass or wood
• Exclusive Xducer ID® technology

The B265LM, Chirp-ready thru-hull is a perfect, mid to deep-depth transducer. The huge bandwidth includes many of the most popular frequencies for targeting top gamefish. This 1 kW, powerhouse delivers clear target details, bottom discrimination, as well as bait and game-fish separation at all depths.

The low-frequency band, operating between 42 and 65 kHz, provides deep-water performance down to 914 m (3000'). It is a good choice when scouting an area or fishing in deeper depths. The medium-frequency band from 85 to 135 kHz is excellent for identifying targets suspended close to the bottom, on structure, and within the water column.

The included, High-performance Fairing improves broadband performance at speeds over 30 knots (34 MPH).

• B265C-LM-MM Transducer
• High Speed fairing Block
• High Speed Fairing Block Bolt Kit
• MMC-11RLDB Cable

The Airmar B265C-LM is a bronze thru-hull transducer designed for marine applications requiring depth and water temperature sensing. This unit is suitable for fiberglass or wood hulls and is engineered for mid to deep-depth performance, offering a 1 kW power rating. It operates across two CHIRP-ready frequency bands: a low frequency band from 42 to 65 kHz with a maximum depth of 914 m (3000'), and a medium frequency band from 85 to 135 kHz with a maximum depth of 457 m (1500'). The transducer provides 73 kHz of total bandwidth, covering popular fishing frequencies. The included high-performance fairing is designed to optimize broadband performance at speeds exceeding 30 knots. The B265C-LM-11R is intended for IT professionals and marine electronics integrators deploying robust sonar solutions, particularly those using Raymarine systems, to achieve clear target details and bottom discrimination.
