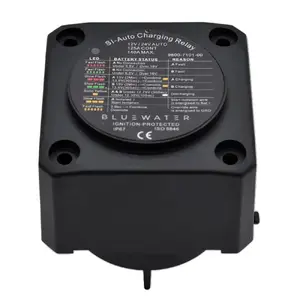

9800-7101-00 - Bluewater 12V 140 AMP Auto Charging Relay 9800-7101-00

Auto Charging Relay 12V, 140 AMP

The automatic charging relay (ACR) automatically manages battery charging to ensure maximum efficiency and protect your batteries.

Features:

• Automatic battery management – connects batteries during charging and isolates them when the voltage drops
• Start Isolation (SI) – protects sensitive electronics during engine cranking by temporarily disconnecting house loads (indicated by a slow-flashing yellow LED)
• High-output support – compatible with alternators up to 120 A
• Dual-color LEDs – provide real-time battery status: Fault, Charging, Discharging, Combine, SI, and Override modes
• Under Voltage Lockout – prevents the relay from closing when battery voltage is too low (9.5V for 12V systems, 19V for 24V systems)
• Durable design – IP67 waterproof, ignition protected, safe for marine and RV applications

Specifications:

• Continuous Rating: 120 Amps
• Intermittent Rating: 140 Amps
• Max Voltage: 48VDC
• Cable Size: 4/0 AWG

Applications:

• Boats – dual battery systems (starter + house)
• Sailboats – navigation and lighting batteries
• Fishing boats – trolling motor and accessory battery protection

The BlueWater 12V 140 AMP Auto Charging Relay, part number 9800-7101-00, is designed for managing dual battery systems in 12V applications. This automatic charging relay (ACR) connects batteries during charging cycles to ensure efficient power distribution and isolates them when voltage drops, protecting individual battery banks. It supports alternators up to 120A and features Start Isolation (SI) to safeguard sensitive electronics by temporarily disconnecting house loads during engine cranking. The unit includes dual-color LEDs for real-time status indication, covering Fault, Charging, Discharging, Combine, SI, and Override modes. An Under Voltage Lockout feature prevents relay closure if battery voltage is too low (9.5V for 12V systems). With an IP67 waterproof and ignition-protected design, this relay is suitable for marine and RV environments, including boats with starter and house batteries, sailboats for navigation and lighting, and fishing boats for trolling motor and accessory battery protection.
