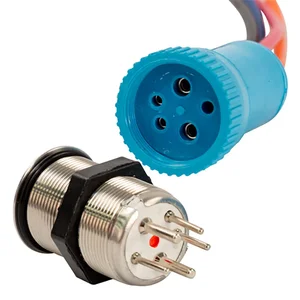

9059-3113-4 - Bluewater 22mm Push Button Switch - Off/On - LED Backlit

22mm Push Button Switch - Off/On/On Contact - LED Backlit

This sleek and durable stainless-steel plated push button is designed to enhance any dashboard with a modern look. Featuring an "Off-On-On" contact configuration, it delivers a reliable performance for a variety of applications.

With an impressive waterproof rating of IP69K, this switch is built for resilience against the elements. The backlit blue LED ensures visibility even in low-light conditions, changing to red to indicate when the function is activated.

Specifications:

• Function: Off-On-On (standard contact)
• Off/1st On: Blue/Green
• 2nd On: Red
• Switch Rating: 15A/12 � 24VDC
• Material: Stainless steel
• Mechanical Life: 50,000 cycles
• Electrical Life: 10,000 cycles

Installation Instructions:

For installation, create a 22mm hole in any material up to 6mm thick. Connect the three color-coded contacts for the switch and the two contacts for the LED indicator for seamless operation.

The BlueWater 22mm Push Button Switch (part number 9059-3113-4) is a durable, LED-backlit switch designed for integration into various control panels and dashboards. This component features an "Off-On-On" contact configuration, providing two distinct "on" states for operational flexibility. Constructed with stainless steel, it offers resilience and a modern aesthetic. The switch is rated for 15A/12-24VDC and boasts an IP69K waterproof rating, making it suitable for environments requiring robust protection against water ingress. Its blue LED backlight ensures visibility in low-light conditions, transitioning to red when the second "on" function is activated. This switch is intended for IT and industrial buyers seeking a reliable, visible, and environmentally resistant control solution for applications requiring a two-stage activation.
