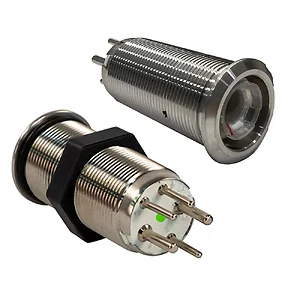

9057-2113 - Bluewater Marine 19mm LED Push Button Switch

Marine 19mm LED Push Button Switch

The 19mm Marine Grade Push Button Switch is designed for compact control solutions in rugged environments. Crafted from corrosion-resistant materials and rated IP69K for waterproofing, this switch is ideal for marine and outdoor use, ensuring durability against environmental stress.

This switch features intuitive LED indicators that glow soft blue for backlighting and bright red when activated, providing immediate visual feedback of the power status. With a rating of 15 amps for single channel use and 7.5 amps per channel in dual channel configurations, it effectively manages high current loads.

Each switch includes a customizable actuator for personal preference, ensuring visibility in diverse lighting conditions. It�s perfect for boat builders, marine technicians, and electrical system upgrades where space and durability are paramount.

Specifications:

• Switch Rating: 15A/12-24VDC
• Switch Contacts: 1 NO, 1 NC | 2 NO, 2 NC
• Mechanical Life: 50,000 Cycles
• Electrical Life: 10,000 Cycles
• Dimensions: View Dimensional Drawings
• Material: Nickel Plated Brass/Stainless Steel
• LED Color: Blue/Green/Red

Installation:

Drill a 19mm hole into any material up to 6mm thick. Connect the 3 contacts for the button, which are color coded for safety, and then connect the 2 contacts for the LED.

The BlueWater Marine 19mm LED Push Button Switch (part number 9057-2113) is engineered for control applications in demanding environments. Its 19mm design facilitates installation in compact spaces, while the IP69K waterproof rating ensures resilience against water and dust ingress, making it suitable for marine and outdoor use. This switch provides visual feedback through LED indicators: a soft blue backlight when inactive and a bright red illumination upon activation. It supports high current loads, rated at 15 amps for single-channel operation or 7.5 amps per channel in dual-channel setups. Constructed from nickel-plated brass or stainless steel, this switch is designed for boat builders, marine technicians, and professionals undertaking electrical system upgrades where durability and space efficiency are critical.
