9057-1113 - Bluewater 19mm Marine Grade Inrush Switch - Blue/Red

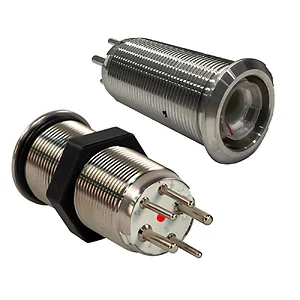

19mm Marine Grade Inrush Push Button Switch - Blue/Red LED - Switch Body Only

The 9057 Series 19mm Inrush Push Button Switch is designed for marine and outdoor applications, providing a durable control solution in demanding environments. Built from corrosion-resistant SS316 stainless steel and boasting an IP69K waterproof rating, this switch is perfect for locations exposed to moisture and environmental stress.

The LED indicators enhance usability by glowing soft blue for backlighting and bright red when the switch is activated, providing immediate visual feedback of the power status. Rated for 15 amps in single channel and 7.5 amps per channel in dual channel setups, the 9057 ensures reliable performance under high current loads.

Each switch features a fully detachable actuator, allowing for customization to match your specific style preferences. The built-in backlighting guarantees visibility in all lighting conditions, making it ideal for marine technicians, boat builders, and anyone upgrading electrical systems in compact spaces.

Specifications:

• Switch Rating: 15A/12-24VDC
• Switch Contacts: 1 NO, 1 NC | 2 NO, 2 NC
• Mechanical Life: 50,000 Cycles
• Electrical Life: 10,000 Cycles
• Dimensions: View Dimensional Drawings
• Material: Nickel Plated Brass/Stainless Steel
• LED Color: Blue/Green/Red

Installation:

To install, drill a 19mm hole through any material up to 6mm thick. Connect the three button contacts (color coded for easy identification), followed by connecting the two LED contacts.

The BlueWater 9057-1113 is a 19mm marine-grade inrush pushbutton switch engineered for reliable operation in challenging outdoor and marine environments. Constructed from corrosion-resistant SS316 stainless steel and featuring an IP69K waterproof rating, this switch is suitable for applications exposed to moisture and environmental stressors. It provides visual feedback through a blue LED backlight and a bright red LED when activated, indicating power status. Rated for 15 amps at 12-24VDC in single-channel configurations or 7.5 amps per channel in dual-channel setups, it supports high current loads. The switch includes a detachable actuator for customization and built-in backlighting for visibility in varying light conditions. This component is designed for marine technicians, boat builders, and professionals upgrading electrical systems in compact spaces requiring a durable and visually informative control solution.
