9057-3114-1 - Bluewater 19mm Push Button LED Switch - Waterproof Design

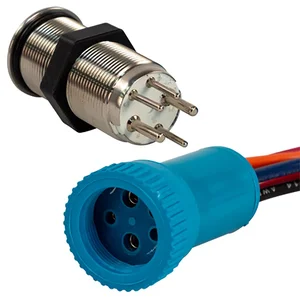

19mm Push Button LED Switch - Waterproof Design

This modern stainless-steel push button switch is designed to enhance the look of any dash while providing reliable functionality. With a Nav/Anc contact, this switch is versatile for various applications.

Rated at IP69K for waterproofing, it is built to withstand tough environments. The button is backlit with blue LED light for excellent visibility at night, and it changes to red when activated to clearly indicate the function is on.

Key Features:

• 1 ft. lead wire for easy installation

Specifications:

• Function: Nav/Anc
• Off/1st On: Blue/Green
• 2nd On: Red
• Rear Mark Page: White dot
• Switch Rating: 15A/12 � 24VDC
• Material: Stainless steel
• Mechanical Life: 50,000 cycles
• Electrical Life: 10,000 cycles

Installation Instructions:

Drill a 19mm hole into any material up to 6mm thick. Connect the three contacts for the button (color-coded for safety), and then connect the two contacts for the LED.

The BlueWater 19mm Push Button LED Switch, part number 9057-3114-1, is a stainless-steel switch designed for applications requiring reliable functionality in challenging environments. This component is suitable for IT hardware integrators and businesses needing a durable control interface. Its IP69K waterproof rating ensures resilience against water ingress, making it appropriate for outdoor or washdown-prone installations. The switch features a blue LED backlight for visibility in low-light conditions, which transitions to red when activated, providing a clear operational status. With a 15A/12-24VDC rating and a 1 ft. lead wire, it facilitates straightforward integration into various systems. This switch is engineered for longevity, offering a mechanical life of 50,000 cycles and an electrical life of 10,000 cycles, addressing the need for robust and low-maintenance control solutions.
