317-0580-FT - Trident Marine Trident 5/8" A2 Fuel & Vent Hose - Black - Per Foot

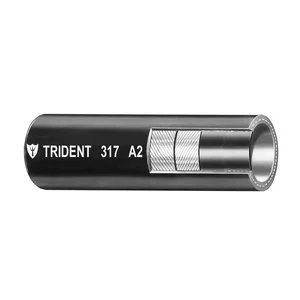

Trident 5/8" A2 Fuel & Vent Hose - Black - Sold by the Foot

The Trident 5/8" ID A2 Fuel Hose is designed specifically for marine applications, accommodating gasoline (including ethanol blends) and diesel (including biodiesel blends).

Features:

• Sold by the foot
• Constructed with a fuel, fire, and age-resistant formulation
• Exceptional resistance to aging, fire, heat, cold, and ozone
• Superior flexibility and bend-ability

Application:

• For use as a marine fuel hose for both venting and diesel distribution
• Suitable for all marine fuels including gasoline, alcohol blends, diesel, and biodiesel

Construction:

• Tube Material: NBR
• Cover Material: NBR/PVC Blend
• Reinforcement: 2 Spiral Polyester
• Temperature Range: -20�F to 212�F (-28�C to 100�C)

Specifications:

• Inner Diameter: 0.625" (15.9 mm)
• Outer Diameter: 0.960" (24.4 mm)
• Burst Pressure: 200 psi (1.38 mpa)
• Working Pressure: 50 psi (0.34 mpa)
• Bend Radius: 3" (76.2 mm)
• Weight: 25.84 lb/100ft (11.72 kg/m)

*The #317 series meets and exceeds ABYC H-24 & H-33, SAE J1527, ISO 7840, & USCG Type A2 standards; NMMA Type Accepted & CE certified.

The Trident 5/8" A2 Fuel & Vent Hose is a marine-grade hose engineered for fuel and ventilation systems in marine environments. This product, identified by part number 317-0580-FT, is suitable for handling various marine fuels, including gasoline (with ethanol blends) and diesel (with biodiesel blends). Its construction features an NBR tube and an NBR/PVC blend cover, reinforced with two spiral polyester layers, providing resistance to aging, fire, heat, cold, and ozone. With an inner diameter of 0.625 inches and a bend radius of 3 inches, it offers flexibility for installation. This hose is designed for IT and procurement professionals managing marine fleet maintenance or vessel manufacturing, ensuring compliance with ABYC H-24 & H-33, SAE J1527, ISO 7840, and USCG Type A2 standards for critical fuel system components.
