9059-2123-1 - Bluewater 22mm Double Momentary Push Button Switch - LED

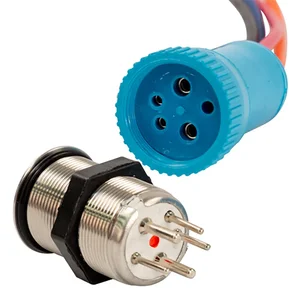

22mm Double Momentary Push Button Switch - LED

This sleek stainless-steel push button switch adds a modern touch to any dashboard or control panel. Featuring an "Off-(On)-(On)" double momentary contact, it provides quick and reliable operation.

Designed with a waterproof rating of IP69K, the switch is perfect for outdoor and demanding environments. At night, its backlighting shines brightly with blue LED light, transitioning to red to indicate the active function clearly.

Specifications:

• Function: Off-(On)-(On) (Double Momentary Contact)
• Backlight Colors: Blue/Green (Off/1st On) and Red (2nd On)
• Switch Rating: 15A/12 � 24VDC
• Material: Stainless Steel
• Mechanical Life: 50,000 cycles
• Electrical Life: 10,000 cycles

Installation:

To install, drill a 22mm hole in any material up to 6mm thick, connect the three contacts for the button (color-coded for ease), and connect the two contacts for the LED lighting.

The BlueWater 22mm Double Momentary Push Button Switch (part number 9059-2123-1) is a control component designed for integration into dashboards or control panels. It features an "Off-(On)-(On)" double momentary contact function, providing two distinct temporary activation points. Constructed from stainless steel, this switch is engineered for durability in demanding environments, supported by an IP69K waterproof rating. It is suitable for outdoor applications or areas exposed to water and dust. The integrated LED backlighting uses blue/green for the off/first momentary state and red for the second momentary state, offering clear visual feedback on its operational status. With a 15A/12-24VDC switch rating, it is intended for IT and industrial buyers requiring a robust, visually informative momentary switch for system control or equipment operation.
