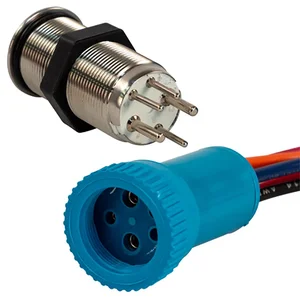

9057-3113-4 - Bluewater 19mm Waterproof Push Button Switch with LED Indicators

19mm Waterproof Push Button Switch with LED Indicators

This stylish push button switch, plated in stainless steel, enhances any dashboard with a sleek, modern look. Designed with an "Off/On/On" contact system, this switch ensures ease of use and functionality.

The durable construction and included gasket provide a waterproof rating of IP69K, making it suitable for various environments. At night, the switch features a blue LED backlight for clear visibility, which changes to red to indicate the active function.

Features:

• 4 ft. lead for flexible installation

Specifications:

• Function: Off-On-On (standard contact)
• LED Colors: Blue/green for Off/On, Red for 2nd On
• Rear Mark Page: Blue dot for easy identification
• Switch Rating: 15A at 12 � 24VDC
• Material: Constructed from stainless steel for durability
• Mechanical Life: 50,000 cycles for longevity
• Electrical Life: 10,000 cycles

Installation:

Drill a 19mm hole in any material up to 6mm thick. Connect the three contacts corresponding to the button (color-coded for safety). Finally, connect the two contacts for LED illumination.

The BlueWater 19mm Waterproof Push Button Switch with LED Indicators, part number 9057-3113-4, is designed for IT and industrial applications requiring a durable and clearly indicated control interface. This stainless steel switch features an "Off/On/On" contact system, providing two distinct active functions. Its IP69K waterproof rating ensures reliable operation in demanding environments where exposure to water or dust is a concern. The integrated blue LED backlight provides visibility when the switch is off or in its first 'on' state, transitioning to red to signal the second active 'on' function. With a 15A rating at 12-24VDC and a 4 ft. lead for flexible installation, this switch is suitable for integrating into control panels, dashboards, or equipment where robust, visually intuitive control is necessary. It addresses the need for a long-lasting switch with a mechanical life of 50,000 cycles.
