148-1126-FT - Trident Marine Trident 1/2" XHD Sanitation Hose - PVC Helix - White

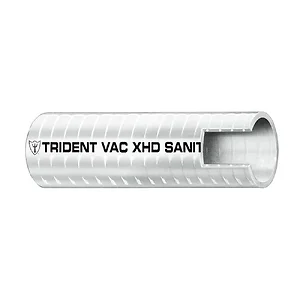

Trident 1-1/2" XHD Sanitation Hose - PVC Helix - White

This extra heavy-duty sanitation hose is crafted from smooth white vinyl and specially compounded to resist odor permeation, making it suitable for both sanitation and potable water applications per FDA standards. Ideal for use in critical areas such as bilge, drain scuppers, and live wells, it is recommended for self-draining installations to ensure the longest possible service life free of odors.

Specifications:

• Tube & Cover: Hard PVC helix
• Color: White
• Reinforcement: PVC Helix
• Temperature Range: 10�F-120�F (-12�C-48�C)
• Inner Diameter: (inch) 1-1/2" / (mm) 38.1
• Outer Diameter: (inch) 1.788" / (mm) 45.4
• Working Pressure: (Psi Vac In./Hg) 28
• Weight: (Lb./ 50 ft.) 22 / (Kg/m) 0.76
• Bend Radius: (inch) 4" / (mm) 102

Note: Do not use with alcohol, anti-freeze, petrochemicals, or solvents. The burst pressure is 4 times the working pressure.

The Trident 1-1/2" XHD Sanitation Hose is an extra heavy-duty hose designed for sanitation and potable water applications in commercial and industrial marine environments. Constructed from smooth white vinyl with a hard PVC helix, this hose is compounded to resist odor permeation, making it suitable for critical areas such as bilge, drain scuppers, and live wells. Its design allows for a 4-inch bend radius, facilitating installation in confined spaces. The hose is recommended for self-draining installations to optimize service life and odor resistance. It meets FDA standards for potable water use and operates within a temperature range of 10�F to 120�F. The working pressure is 28 Psi Vac In./Hg, with a burst pressure four times higher. This product, part number 148-1126-FT, is sold by the foot, providing flexibility for specific project length requirements.
