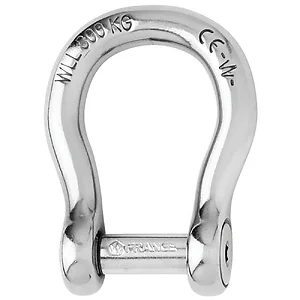

Self-Locking Allen Head Pin Bow Shackle - 8mm Diameter - 5/16"
Features:
- Self-locking twisted shackle with allen head pin forged in grade 316L stainless steel
- The pin is locked into one of the indentations
- The head of the pin does not stick out from the shackle body and thus eliminates any risk of snagging
- No risks of loosening due to vibrations
- Outstanding working and breaking loads
- WLL: only for industrial applications (lifting i.e…)
- CE marking
Applications:
- Ideal for linking chains and anchor
- On the halyard, avoids damaging the sails
- To be used when the clutter is reduced
- To be used when ample room is required
Specifications:
- Materials: 316 stainless steel grade
- Working load: (lb) 2110 / (kg) 960
- WLL: (lb) 1190 / (kg) 540
- Breaking load: (lb) 5950 / (kg) 2700
- Weight: (lb) 0.148 / (g) 67
Dimensions:
- A: (inch) 1 29/64" / (mm) 37
- B: (inch) 5/8" / (mm) 16
- C: (inch) 5/16" / (mm) 8
- D: (inch) 5/8" / (mm) 16
- D diameter: (inch) 5/16" / (mm) 8
- E: (inch) 9/32" / (mm) 7
- F: (inch) 63/64" / (mm) 25
- M: (inch) 1 37/64" / (mm) 40
Caption:
- Working Load (WL): For nautical applications
- Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load.
WLL = Breaking load / 5
*Sold as an Individual
