01224 - Wichard Marine Wichard Self-Locking Twisted Shackle - Diameter 8mm - 5/16"

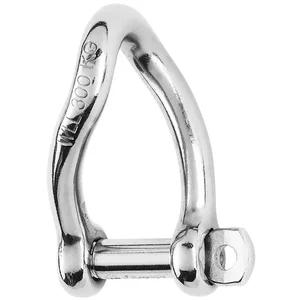

Self-Locking Twisted Shackle - Diameter 8mm - 5/16"

Features:

• Self-locking twisted shackle forged in grade 316L stainless steel
• The pin is locked into one of the indentations
• No risks of loosening due to vibrations
• Outstanding working and breaking loads

Applications:

• Perfect for application where a 90° angle twist setup is required
• Often used to attach an unarticulated part (block on a rail) or on purchases

Specifications:

• Materials 316 stainless steel grade
• Working load (lb) 2200
• Breaking load (lb) 6610
• Weight (lb) 0.148

Dimensions (see 2nd image):

• A (inch)1-37/64"
• B (inch) 5/8"
• C (inch) 5/16"
• D (inch) 5/8"
• D diameter (inch) 5/16"
• E (inch) 9/32"
• F (inch) 2-23/64"

The Wichard Self-Locking Twisted Shackle (part number 01224) is a specialized fastening component designed for applications requiring a secure, angled connection. Forged from grade 316L stainless steel, this shackle features a self-locking pin mechanism that prevents loosening even under vibration. Its twisted design facilitates a 90-degree angle setup, making it suitable for situations where standard shackles might not provide optimal alignment.

This shackle is engineered for environments demanding high load capacities and corrosion resistance. It offers a working load of 2200 lbs and a breaking load of 6610 lbs, providing robust performance for critical connections. Typical use cases include attaching unarticulated parts, such as blocks on a rail, or integration into purchase systems where a specific angular orientation is necessary. Its durable construction and secure locking mechanism address the need for reliable, maintenance-free connections in demanding operational settings.
