6644 - Wichard Marine Wichard Diamond Pad Eye - Round - 60mm Length (2-23/64") - M5 Screw

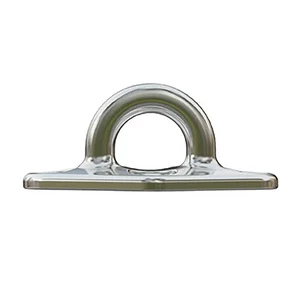

Diamond Pad Eye - Round - 60mm Length (2-23/64") - M5 Screw

Features:

• Mechanical resistance versus corrosion resistance ratio
• Optimized dimensions
• For M5 screw

Applications:

• Mast foot blocks
• Reefing blocks
• Various fastenings

Specifications:

• Materials: Duplex stainless steel grade
• Working Load: (lb) 2645.5 / (kg) 1200
• Breaking Load: (lb) 7054.7 / (kg) 3200
• Weight: (lb) 0.13 / (g) 59
• W.L 1 (90 degrees): (lb) 2645.5 / (kg) 1200
• W.L 2 (45 degrees): (lb) 2425 / (kg) 1100
• W.L 3 (0 degrees): (lb) 2425 / (kg) 1100
• B.L 1 (90 degrees): (lb) 7054.7 / (kg) 3200
• B.L 2 (45 degrees): (lb) 6613.8 / (kg) 3000
• B.L 3 (0 degrees): (lb) 6613.8 / (kg) 3000

Dimensions:

• A: (inch) 2 23/64" / (mm) 60
• B: (inch) 1 13/16" / (mm) 46
• C: (inch) 1 1/2" / (mm) 38
• D: (inch) 15/16" / (mm) 24
• E: (inch) 37/64" / (mm) 14.5
• F: (inch) 3/4" / (mm) 19

Caption:

• Working Load (WL): For nautical applications
• Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5

*Sold as an Individual
