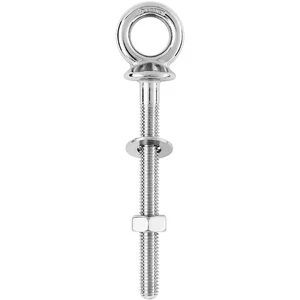

Wichard Marine 06497 M12 Eye Bolt - 175mm Length with High Load Capacity

M12 Eye Bolt - 175mm Length with High Load Capacity

Overview:

This M12 eye bolt is crafted from 316L stainless steel, designed for a variety of fastening and towing applications. Offering outstanding working and breaking loads, it is ideal for both nautical and industrial use.

Applications:

• Various fastening applications
• Towing applications
• Attachment for waterskiing lines

Specifications:

• Materials: 316L stainless steel
• Working Load: 5290 lb (2400 kg)
• Breaking Load: 7710 lb (3500 kg)
• Weight: 0.359 lb (163 g)

Dimensions:

• A: M12 x 175 mm
• B: 45/64" (18 mm)
• C: 1 39/64" (41 mm)
• D: 5/16" (8 mm)
• E: 1 7/64" (28 mm)
• F: 4 23/32" (120 mm)
• G: 4 9/64" (105 mm)

Important Notes:

• Working Load (WL): Suitable for nautical applications
• Working Load Limit (WLL): For industrial applications only; safety factor is 5 times the breaking load. WLL = Breaking load / 5

*Sold as an individual item.
