01223 - Wichard Marine Wichard Self-Locking Twisted Shackle - Diameter 6mm - 1/4"

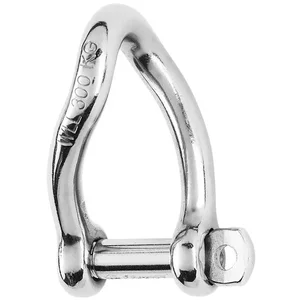

Self-Locking Twisted Shackle - Diameter 6mm - 1/4"

Features:

• Self-locking twisted shackle forged in grade 316L stainless steel
• The pin is locked into one of the indentations
• No risks of loosening due to vibrations
• Outstanding working and breaking loads

Applications:

• Perfect for application where a  90° angle twist setup is required
• Often used to attach an unarticulated part (block on a rail) or on purchases

Specifications:

• Materials 316 stainless steel grade
• Working load (lb) 1320
• Breaking load (lb) 3300
• Weight (lb) 0.06

Dimensions (see 2nd page):

• A (inch) 1-3/16"
• B (inch) 15/32"
• C (inch) 15/64"
• D (inch) 15/32"
• D diameter (inch) 15/64"
• E (inch) 13/64"
• F (inch) 1-49/64"

The Wichard Self-Locking Twisted Shackle, part number 01223, is a specialized fastening component designed for applications requiring a secure, angled connection. Forged from grade 316L stainless steel, this shackle features a self-locking pin mechanism that prevents loosening due to vibrations. This design ensures the pin remains securely in place once engaged, reducing the risk of accidental disengagement in dynamic environments. It is suitable for setups where a 90-degree angle twist is necessary, such as attaching unarticulated parts like blocks on a rail or for use in purchase systems. With a working load of 1320 lb and a breaking load of 3300 lb, it offers reliable performance for its size. This shackle is intended for IT hardware professionals or facilities managers who require robust, vibration-resistant hardware for specific mounting or rigging scenarios within their operational infrastructure, where standard shackles may not provide the necessary angular orientation or security.
