SKU: EYC69BI0TD |  Mfg. Part: XM-PEX-1P2S  | UPC: 850390003804  |
 1 Reviews  |     Share

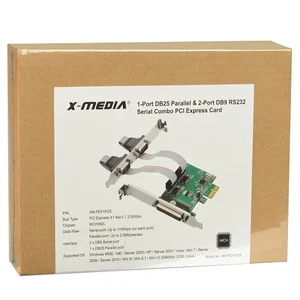

Xmedia XM-PEX-1P2S X-Media XM-PEX-1P2S 1-Port Parallel & 2-Port Serial Combo PCIExpress (PCIe) Controller Card

Special Order
Ships in 1-2 weeks
Condition: New

$39.53  $53.37
 Free Shipping for this Item

Product Overview

  • Notes:
  • Model: XM-PEX-1P2S
  • UPC: 8 50390 00380 4
  • Product Requirements:
  • PCI Express x1 slot
  • Parallel and Serial cables and ports

Technical Specifications

  • X-Media XM-PEX-1P2S 1-Port Parallel & 2-Port Serial PCIExpress Controller Card
  • General Features:
  • One (1) DB25 Parallel port
  • Two (2) DB9 RS232 Serial ports
  • PCI Express Rev. 1.1 (PCIe x1) Bus Interface
  • Compliant with PCI Express specification Rev. 1.1
  • Single-lane PCI Express with throughput up to 2.5Gbps
  • Compliant with IEEE 1284 standard
  • Support Bi-Directional data transmission of speed up to2MByte/s
  • Support ECP, EPP, SPP, P/2 mode
  • Compatible with industrial standard 16C550/16C552/16C554 and16C750 UART
  • Data transfer rate up to 115Kbps on each port
  • On chip 256-byte depth FIFO in transmit, receive path of eachport
  • Support 5-6-7-8-bit serial format, 1 or 2 Stop bit mode
  • Support MODEM signal CTS, DSR, RI, DCD, DTR, RTS can beconverted to RS232 level
  • Odd, Even, No parity, space 0 and mark 1 etc.
  • Low Profile Bracket included for slim size desktop PCinstallation
  • Lead-free components (RoHS compliant)
  • Specifications:
  • Standard: IEEE 1284; 16C550/16C552/16C554 and 16C750 UART
  • Chipset: WCH382L
  • Data Transfer Rate: Parallel ? 2MByte/s; Serial ? 115Kbps perport
  • Compatible PC: Full/Slim Size Desktop PCs
  • Supported OS: Windows 98SE/ME/2000/XP/Vista/7/8/8.1/10(32/64-bit); Windows Server 2000/2003/2008/2016; DOS; Linux

Product Details

  • Manufacturer:
  • Model Number:
  • ASIN:
  • UPC:
  • Condition:
  • Weight:
  • Dimensions:
  • Updated:
  • Added:
  • XMEDIA
  • XM-PEX-1P2S
  • B08MY86DWB
  • 850390003804
  • New
  • 0.25 lbs
  • 7 X 5 X 5
  • Feb 19, 2026
  • Feb 08, 2021
Product Identifiers: Brand: Xmedia • Part #: XM-PEX-1P2S • UPC: 850390003804 • ASIN: B08MY86DWB • Category: Port Expansion Cards

Xmedia XM-PEX-1P2S X-Media XM-PEX-1P2S 1-Port Parallel & 2-Port Serial Combo PCIExpress (PCIe) Controller Card
