Technical Specifications
Chipset:
Renesas uPD720201 Compliant with USB 3.0 Specification Bus connecto:
PCI Express 1x Version:
PCI Express 2.0 USB data transfer rate:
Up to 5Gbps Per port over-current protection USB power output:
Up to 5V/900mA Product:
PCB Color:
Green Connectors:
4x 9-pin USB 3.0 Type A, Female
1x 15-pin SATA power connector
SATA power connection is required Environmental conditions:
Operating temperature:
32 to 140 degrees F
Storage temperature:
14 to 158 degrees F
Relative humidity:
5% to 90% RH (non-condensing) Certifications/Standards:
FCC, CE, RoHS
System Requirements
Desktop PC with one available PCI Express (PCIe) slot
SATA power connection is required
Windows 10 / 8.x / 7
Windows Server 2016 (32-/64-bit) / 2012 R2 / 2012 (32-/64-bit) / 2008 R2 / 2008
Package contents

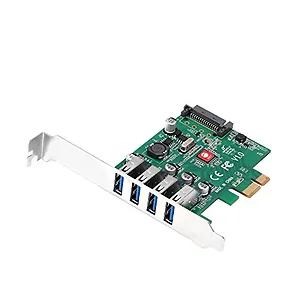

DP USB 3.0 4-Port PCIe Host Card
Low profile bracket
Driver CD
Quick Start Guide
Item Dimension (L"xW"xH")
4 x 1 x 3
Weight
1.00lb
Warranty Information
2 years
