Siig JJ-E20711-S1 RS-232/422/485 Serial Adapter Adds 232 RS-232 Serial Po

SKU: T5R6LDM18L |  Mfg. Part: JJ-E20711-S1  | UPC: 662774044095  |  0 Reviews  |  Share

13 Available
Condition: New

$46.88  $63.29
Need 10+? Request a volume quote
 Free Shipping for this Item
 Free pickup in Frisco, TX
Ready in 3–5 business days. Choose “Local Pickup” at checkout.

Product Overview

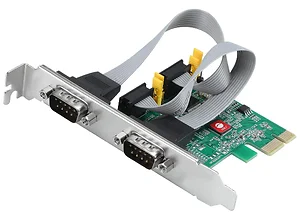

The SIIG's PCIe serial card JJ-E20711-S1 can be installed into an available PCI Express slot on the computer's motherboard, to provide two 9-pin RS-232 serial ports. It offers a convenient solution for connecting modern or legacy equipment to newer computer systems that do not have RS-232 or parallel ports

Technical Specifications

  • Adds two 9-pin RS-232 serial port to PCIe enabled desktop computers, each port supports data transfer rate up to 250Kbps, Compliant with PCI Express 2.0 Gen 1
  • ✅ Single-lane (x1) PCI Express End-point Controller with PHY integrated; Full serial modem control with hardware and software flow control; Supports 5, 6, 7, 8 and 9-bit serial formats, and Even, Odd, None, Space and Mark parity; On chip 256-byte FIFO buffers in transmit and receive path for each serial port
  • ✅ Works as either standard RS-232 port or with 5V or 12V power output for devices that require power (such as handheld scanners, table scanners, POS displays and many more). Configurable via jumpers
  • ✅ Supports PCI Bus Power Management Interface Specification Revision 1.2; Dual profile design installs into both full-size and low-profile system chassis with the included mounting brackets; Installs into any PCI Express slot of any lane width
  • ✅ Perfect solution to connect with POS system, industrial testing and control device, security system, logistic management equipment, printers, scanners, et

Product Details

  • Manufacturer:
  • Model Number:
  • ASIN:
  • UPC:
  • Condition:
  • Shipping Weight:
  • Package Size:
  • TAA Compliant:
  • Country of Origin:
  • Category:
  • Date First Available:
  • Siig
  • JJ-E20711-S1
  • B08ZXQLZ4T
  • 662774044095
  • New
  • 0.33 lbs
  • 8 x 6 x 2 in
  • Yes
  • CN
  • Port Expansion Cards
  • March 6, 2021
