XKASML12X24 - Lectrotab XKA Trim Tab Kit with MLC-1 Control - 12x24

Lectrotab XKA Trim Tab Kit with MLC-1 Control - 12 x 24

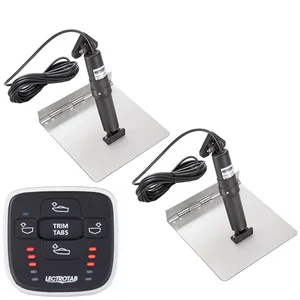

The Lectrotab XKA trim tab kit features a robust and corrosion-resistant stainless steel design that enhances the performance and longevity of your vessel. This kit includes all necessary components for installation, ensuring quiet operation and maximum lift force while being completely maintenance-free.

The MLC-1 control allows for simultaneous adjustment of both trim tabs with a single button press while providing real-time LED position indicators that adapt to light conditions.

Key Features:

• Durable construction with continuous rolled and pinned hinges
• Precision-engineered actuator for reliable and quiet operation
• Corrosion-free materials prevent deterioration
• Internal brake system for secure tab positioning during navigation
• No oil leaks or hydraulic maintenance required

Technical Specifications:

• Trim Tab Size: 12" x 24" (30 x 61 cm)
• Recommended Boat Length: 28' to 48' (8.5 to 14.5 M)
• Material: 12 gauge, 304 Stainless Steel
• Voltage: 12 V
• Stroke Length: 2.25" (57 mm)
• Cable Length: 23' (7 M)
• Vertical Height: 11.875" (302 mm)
• Control Dimensions: 3.15" x 3.07" (80 x 77 mm)
• Operating Voltage: 12 or 24 V

Includes:

• Manual Leveling Control
• Two Stainless Steel tabs
• Two actuators with 23' (7 M) cables
• Instruction Manual

The Lectrotab XKA Trim Tab Kit with MLC-1 Control (part number XKASML12X24) is a marine performance enhancement system designed for vessels between 28 and 48 feet in length. This kit provides a complete solution for adjusting boat trim, featuring two 12" x 24" 304 stainless steel tabs and two precision-engineered actuators. The system operates on 12V and includes a Manual Leveling Control (MLC-1) unit, which allows for simultaneous tab adjustments and provides real-time LED position feedback. Its robust construction, including continuous rolled and pinned hinges and corrosion-free materials, aims for durability and quiet operation without requiring hydraulic maintenance. The internal brake system secures tab positioning, and the actuators are fully load-tested to push 1000 lbs. This kit is suitable for marine businesses or vessel owners seeking a reliable, low-maintenance trim tab solution.
