XKASML9X9 - Lectrotab XKA Stainless Steel Trim Tab Kit with Control - 9x9

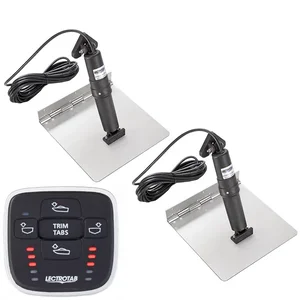

XKA Stainless Steel Trim Tab Kit with Control - 9 x 9

The Lectrotab XKA stainless steel trim tab kit excels in strength and reliability. Each tab features a continuous rolled and pinned hinge, which enhances durability and eliminates the need for welding.

This kit is designed with a precision-engineered actuator for quiet, non-hydraulic operation, requiring no maintenance. The system is completely corrosion-resistant and ensures precise tab positioning while providing maximum lift force. Installation is simplified as the actuator is housed in a non-metallic, permanently sealed casing that requires no internal components in the boat.

A significant advantage over hydraulic systems is the absence of oil leaks. The actuator setup features either a standard or low-profile transom mounting bracket.

The included Lectrotab control is microprocessor-based, allowing simultaneous movement of both tabs with a single button press. It features LED indicators for tab positions, which automatically adjust brightness based on the environment.

Features:

• Continuous rolled and pinned hinge for enhanced strength
• Upper ram seal position protected from debris or barnacle interference
• Internal pressure equalization system for reliable performance
• Built-in brake system to prevent tab movement during operation
• Quiet functionality
• Fully load-tested actuators capable of pushing 1000 lbs
• Durable, non-metallic design resistant to corrosion and UV damage

Technical Specifications:

• Trim Tab Size (L x W) - 9" x 9" (23 x 23 cm)
• Recommended Boat Length - 14' to 19' (4 to 6 M)
• Made of - 12 gauge, 304 Stainless Steel
• Actuator DC Voltage - 12 V
• Actuator Stroke Length - 2.25" (57 mm)
• Actuator Cable Length - 23' (7 M)
• Actuator Vertical Height - 11.875" (302 mm)
• Control Dimensions (W x H) - 3.15" x 3.07" (80 x 77 mm)
• Control Mounting Hole Cutout - 2" (50 mm)
• Control Operating Voltage - 12 or 24 V

In the Box:

• One (1) Manual Leveling Control
• Two (2) Stainless Steel tabs
• Two (2) actuators with 23' (7 M) cables
• Instruction Manual

*Sold as a Kit

The Lectrotab XKA Stainless Steel Trim Tab Kit with Control (part number XKASML9X9) is a non-hydraulic trim tab system designed for marine applications. This kit provides a solution for boat owners seeking enhanced vessel stability and performance, particularly for boats between 14 to 19 feet in length. It includes two 9x9 inch 304 stainless steel trim tabs, two 12V DC actuators, and a microprocessor-based control unit.

The system features a continuous rolled and pinned hinge design for durability and corrosion resistance. Its non-hydraulic operation eliminates the risk of oil leaks and reduces maintenance requirements, as the actuators are permanently sealed and do not require internal boat components. The included control allows for simultaneous tab movement and provides LED position indicators with automatic brightness adjustment, simplifying operation for the user. This kit addresses the need for a reliable, low-maintenance trim tab solution.
