XKAF9X18A - Lectrotab XKA Aluminum Trim Tab Kit with Switch - 9x18

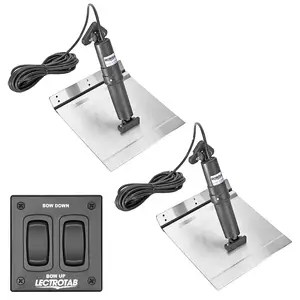

XKA Aluminum Trim Tab Kit with Rocker Switch - 9 x 18

The Lectrotab Aluminum Trim Tab Kit is engineered specifically for aluminum hulled boats, offering an economical yet robust option for various marine applications. Each tab features a durable, corrosion-resistant epoxy coating and is equipped with a heavy-duty "no-break" polypropylene hinge designed to withstand over 300,000 cycles at a 90° bend.

This kit includes a precision-engineered actuator that operates quietly and is designed to be maintenance-free, eliminating the concerns of leaks associated with hydraulic systems. The actuator is securely housed in a non-metallic, permanently sealed unit, ensuring that no components need to be installed inside the boat.

The innovative flat rocker switch includes improved sealing for water resistance and a recessed design to withstand accidental breakage. The circuitry allows for an "instant stop" function, which prevents over-running of the actuator when the switch is released.

Specifications:

• Trim Tab Size (L x W) - 9" x 18" (23 x 46 cm)
• Boat Length Compatibility - 21' to 30' (6.5 to 9 M)
• Tab Material - Marine grade 6005-T5 Aluminum Alloy
• Actuator Voltage - 12 V
• Actuator Stroke Length - 2.25" (57 mm)
• Actuator Cable Length - 23' (7 M)
• Actuator Vertical Height - 11.875" (302 mm)
• Rocker Switch Dimensions (W x H) - 3.125" x 3.25" (79.4 x 82.5 mm)
• Rocker Switch Cutout Dimensions (H x W) - 2.25" x 2" (57.5 x 50 mm)
• Rocker Switch Operating Voltage - 12 or 24 V

The Lectrotab XKA Aluminum Trim Tab Kit with Switch (part number XKAF9X18A) is an electromechanical solution designed for aluminum-hulled boats ranging from 21 to 30 feet in length. This kit provides an economical option for marine applications requiring trim adjustment. It includes 9" x 18" marine-grade 6005-T5 aluminum alloy tabs, each featuring a corrosion-resistant epoxy coating and a durable polypropylene hinge tested for over 300,000 cycles. The system utilizes a 12V maintenance-free actuator with a 2.25" stroke, housed in a permanently sealed, non-metallic unit that eliminates the need for internal boat installation and hydraulic leak concerns. Operation is managed via a water-resistant flat rocker switch with an "instant stop" function to prevent actuator over-running. This product addresses the need for reliable and robust trim control in suitable marine environments.
