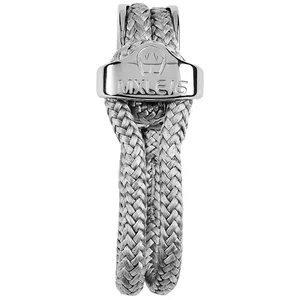

21106 - Wichard Marine Wichard MXLEvo 16 - Soft Block - 16mm Rope Size - 11/16"

MXLEvo 16 - Soft Block - 16mm Rope Size - 11/16"

Features:

• MXLEvo: A soft block solution designed for all yachtsmen, amateur or pro. Designed for heavy-load applications, this system is available in three sizes
• Economical and easy to use: Delivered complete with a Dyneema SK78 loop, you don't need any specific technical knowledge to use the MXLEvo. It can be installed quickly and easily on any type of anchoring (chain plate, head ropes, etc.). The rope housing keeps the ropes inside the block when there is no load on the system
• The MXLEvo offers excellent value for money. It is one of the cheapest soft blocks on the market
• Heavy load applications: The MXLEvo is designed to be used with heavier loads (low rope movement speed). As such, it is the perfect solution for use as a mast foot block, halyard tackle, barber hauler, block and tackle, sheet return, large sail, foot, etc.
• Lightweight, robust, and highly compact, the MXLEvo provides exceptional resistance for its weight. In comparison with a standard competitor's block, The MXLEvo 16 is: twice as robust, half the weight, a 35% lighter rope with a stronger breaking load
• A reliable solution with no need for maintenance: As it does not contain any moving parts (such as a sheave), the MXLEvo is highly reliable and requires no maintenance
• Adaptable to your deck plan: The loop on the MXLEvo can be positioned in one of two ways, making it easily flexible to your deck and to whatever anchoring point or chain plate alignment you choose

Applications:

• Mast foot block
• Halyard block
• Barber hauler
• Purchase
• Tackle
• Sheet return
• Mainsail outhaul
• Snatch block (in that case it is recommended to use an 8 mm rope size)

Specifications:

• Materials: Duplex stainless steel grade S78 Dyneema
• Rope size: (inch) 11/16" / (mm) 16

Dimensions:

• Length: (inch) 1 27/32" / (mm) 47
• Width: (inch) 2 23/64" / (mm) 60
• Thickness: (inch) 1 39/64" / (mm) 41
• Loop diameter: (inch) 15/64" / (mm) 6
• Loop length: (inch) 10 5/8" / (mm) 270
• Working load: (lb) 5510 / (kg) 2500
• Breaking load: (lb) 11020 / (kg) 5000
• Weight: (lb) 0.309 / (g) 140

Caption:

• Working Load (WL): For nautical applications
• Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5

*Sold as an Individual

The Wichard MXLEvo 16 Soft Block, part number 21106, is a robust and compact hardware solution designed for managing heavy-load applications in marine environments. This soft block is suitable for both amateur and professional yachtsmen requiring reliable rope management. It addresses challenges associated with traditional blocks by offering a lightweight, maintenance-free design with no moving parts, enhancing long-term reliability. Constructed from duplex stainless steel and S78 Dyneema, it provides superior strength for its size, with a working load of 5510 lbs (2500 kg) and a breaking load of 11020 lbs (5000 kg). The included Dyneema SK78 loop facilitates quick installation without specialized tools. This product is ideal for applications such as mast foot blocks, halyard tackles, barber haulers, and various purchase systems, offering flexibility in deck layout due to its adaptable loop positioning. Its compact dimensions (1 27/32" L x 2 23/64" W) and low weight (0.309 lbs) make it a practical choice for space-constrained or weight-sensitive setups.
