11206 - Wichard Marine Wichard HR Stainless Steel D Shackle - 15/32" Diameter

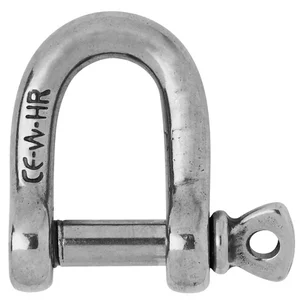

Wichard HR Stainless Steel D Shackle - 15/32" Diameter

Overview:

This high-quality forged D shackle is made from HR stainless steel grade (17,4 PH) and is designed to provide exceptional strength and durability in demanding applications.

Applications:

• Ideal for high load applications
• Standard uses of shackles
• Suitable for attachment applications like blocks and heads
• Not recommended for mooring applications

Specifications:

• Material: HR 17.4 PH stainless steel grade
• Working Load (lb): 7930
• Safe Working Load (WLL) (lb): 4400
• Breaking Load (lb): 22040
• Weight (lb): 0.423
• Dimensions: A (inch) 117/32", B (inch) 15/16", D Diameter (inch) 15/32"

The Wichard HR Stainless Steel D Shackle, part number 11206, is a forged component manufactured from HR 17.4 PH stainless steel. This material grade offers up to 60% greater resistance compared to standard 316L stainless steel shackles, contributing to its durability in demanding environments. It is designed for high load applications, including standard shackle uses and attachment points for items such as blocks and heads. The shackle has a Working Load Limit (WLL) of 4400 lb and a Breaking Load of 22040 lb, making it suitable for industrial lifting and other applications requiring robust connections. Its construction and material choice aim to provide a reliable fastening solution for professional use, excluding mooring applications. Each unit is CE marked and includes a batch number for traceability.
