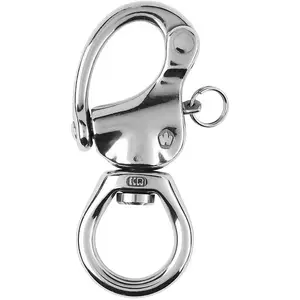

02377 - Wichard Marine Wichard HR Snap Shackle - Large Bail - Length 140mm

HR Snap Shackle - Large Bail - Length 140mm

Features:

• HR Forged snap shackle (Grade 17.4 PH stainless steel) with large eye
• The large eye allows attaching several ropes
• Free rotation of the snap shackle thanks to the swivel eye
• The plunger pin is set captive into the hook and cannot become detached
• Excellent working and breaking loads
• Easy to open by pulling the plunger pin (possibility to attach a lanyard)

Applications:

• Snap shackle applications
• Applications requiring a free rotation of the snap shackle (for a better sail orientation)

Specifications:

• Materials HR 17.4 PH stainless steel grade
• Length (inch) 5-33/64"
• Working load (lb) 6170
• Breaking load (lb) 16530
• Weight (lb) 0.877

Dimensions (see 2nd image):

• A (inch) 1-1/32"
• B (inch) 1-3/8"

The Wichard HR Snap Shackle with Large Bail (part number 02377) is a forged stainless steel component designed for applications requiring secure, rotatable connections. Constructed from HR 17.4 PH stainless steel, it offers a working load of 6170 lb and a breaking load of 16530 lb. Its large eye is engineered to accommodate multiple ropes, enhancing versatility in rigging setups. The swivel eye facilitates free rotation, which can be beneficial in applications like sail orientation where dynamic adjustments are needed.

This snap shackle features a captive plunger pin that prevents detachment, ensuring operational reliability. Opening is achieved by pulling the plunger pin, with an option to attach a lanyard for easier access. Weighing 0.877 lb and measuring 140mm (5-33/64") in length, this component is suitable for environments demanding high strength and corrosion resistance.
