01225 - Wichard Marine Wichard Self-Locking Twisted Shackle - 10mm Diameter - 13/32"

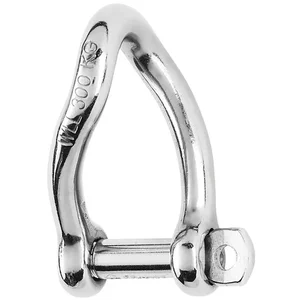

Wichard 10mm Self-Locking Twisted Shackle - 13/32"

Description:

This rugged and reliable self-locking twisted shackle is designed with a 10mm diameter and is made from durable grade 316L stainless steel, ensuring it withstands challenging marine environments.

Key Features:

• Manufactured from high-quality grade 316L stainless steel for corrosion resistance
• Self-locking mechanism provides secure attachment
• Pin locks into one of the predefined indentations for added safety
• Designed to minimize loosening from vibrations during use
• Exceptional working load limit for heavy-duty applications

Ideal Applications:

• Best suited for setups that require a 90° angle twist
• Ideal for attaching unarticulated parts such as blocks on rails or in purchase systems

Specifications:

• Working load: 3170 lb (1440 kg)
• Breaking load: 9920 lb (4500 kg)
• Weight: 0.28 lb (127 g)

Dimensions:

• A: 1 31/32" (50 mm)
• B: 25/32" (20 mm)
• C: 25/64" (10 mm)
• D: 3/4" (19 mm)
• D diameter: 25/64" (10 mm)
• E: 23/64" (9 mm)
• F: 2 29/32" (74 mm)

Safety Note:

The Working Load Limit (WLL) is calculated as the breaking load divided by 5, ensuring safety for industrial applications. Always adhere to safety practices.

*Sold individually.

The Wichard Self-Locking Twisted Shackle (part number 01225) is a specialized fastening component designed for industrial and marine applications requiring secure, angled connections. Constructed from grade 316L stainless steel, it offers corrosion resistance suitable for challenging environments. This shackle features a 10mm diameter and a self-locking pin mechanism that engages predefined indentations to prevent accidental opening and resist loosening caused by vibrations. It is engineered for setups where a 90-degree angle twist is necessary, such as attaching unarticulated parts like blocks on rails or within purchase systems. With a working load limit of 3170 lb (1440 kg) and a breaking load of 9920 lb (4500 kg), this shackle provides a robust solution for heavy-duty applications, ensuring reliable and safe attachment.
