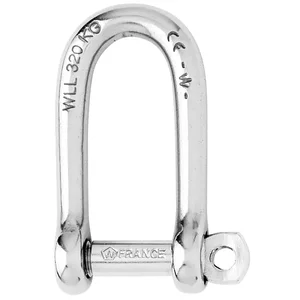

01215 - Wichard Marine Wichard Self-Locking Long D Shackle - 10mm Diameter - 13/32"

Self-Locking Long D Shackle - 10mm Diameter - 13/32"

Features:

• Self-locking D shackle forged in grade 316L stainless steel
• The pin is locked into one of the indentations
• No risks of loosening due to vibrations
• Outstanding working and breaking loads
• WLL: only for industrial applications (lifting i.e…)
• CE marking

Applications

• Standard applications of shackle requiring more length
• Attachment applications: blocks, head

Specifications:

• Materials: 316 stainless steel grade
• Working load: (lb) 3350 / (kg) 1520
• WLL: (lb) 1890 / (kg) 860
• Breaking load: (lb) 9470 / (kg) 4300
• Weight: (lb) 0.282 / (kg) 4300

Dimensions:

• A: (inch) 2 11/64" / (mm) 55
• B: (inch) 25/32" / (mm) 20
• C: (inch) 25/64" / (mm) 10
• D: (inch) 3/4" / (mm) 19
• D diameter: (inch) 25/64" / (mm) 10
• E: (inch) 23/64" / (mm) 9
• G: (inch) 3 7/64" / (mm) 79
• H: (inch) 2 3/64" / (mm) 52

Caption:

• Working Load (WL): For nautical applications
• Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load.
  WLL = Breaking load / 5

*Sold as an Individual

The Wichard Self-Locking Long D Shackle (part number 01215) is a specialized lifting shackle designed for industrial applications. Constructed from grade 316L stainless steel, this component offers a 10mm (13/32") diameter and is engineered for reliability in demanding environments. Its primary feature is a self-locking pin mechanism, which prevents accidental loosening caused by vibrations, thereby enhancing operational safety. This shackle is suitable for IT and industrial buyers who require secure attachment points for blocks, heads, or other equipment where an extended length shackle is beneficial. It addresses the need for a robust, vibration-resistant connection in lifting scenarios, ensuring stability and reducing the risk of disengagement under load. The CE marked shackle is built to handle high working and breaking loads, providing a dependable solution for critical industrial lifting tasks.
