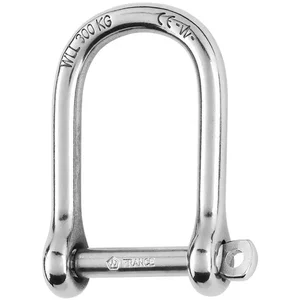

01262 - Wichard Marine Wichard Self-Locking Large Shackle - Diameter 5mm - 3/16"

Self-Locking Large Shackle - Diameter 5mm - 3/16"

Features:

• Self-locking large shackle forged in grade 316L stainless steel
• The pin is locked into one of the indentations
• No risks of loosening due to vibrations
• Outstanding working and breaking loads
• WLL: only for industrial applications (lifting i.e…)
• CE marking and batch number

Applications:

• For applications where a large opening shackle is required

Specifications:

• Materials 316 stainless steel grade
• Working load (lb) 550
• WLL (lb) 480
• Breaking load (lb) 2420
• Weight (lb) 0.035

Dimensions (see 2nd image):

• A (inch) 1-27/64"
• B (inch) 25/32"
• C (inch) 13/64"
• D (inch) 7/16"
• D diameter (inch) 13/64"
• E (inch) 13/64"
• F (inch) 1-57/64"
• G (inch) 1-3/8"

The Wichard Self-Locking Large Shackle, part number 01262, is a forged component designed for industrial applications requiring secure fastening. Constructed from grade 316L stainless steel, this shackle features a self-locking pin mechanism that engages with indentations to prevent loosening caused by vibrations. This design ensures stability in demanding environments where maintaining connection integrity is critical.

This shackle is suitable for scenarios where a large opening is necessary for attachment or connection. It offers a working load limit (WLL) of 480 lb for industrial lifting applications and a breaking load of 2420 lb. The product is CE marked and includes a batch number for traceability. Its robust construction and self-locking feature address the need for reliable, vibration-resistant connections in various industrial settings, providing a practical solution for securing loads or components.
