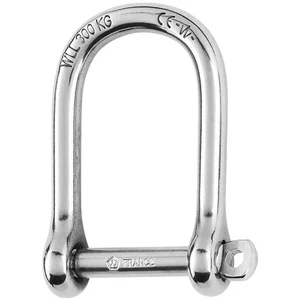

01263 - Wichard Marine Wichard Self-Locking Large Opening Shackle - 6mm Diameter - 1/4"

Self-Locking Large Opening Shackle - 6mm Diameter - 1/4"

Features:

• Self-locking large shackle forged in grade 316L stainless steel
• The pin is locked into one of the indentations
• No risks of loosening due to vibrations
• Outstanding working and breaking loads
• WLL: only for industrial applications (lifting i.e…)
• CE marking

Applications:

• For applications where a large opening shackle is required

Specifications:

• Materials 316 stainless steel grade
• Working load: (lb) 990 / (kg) 450
• WLL: (lb) 660 / (kg) 300
• Breaking load: (lb) 3300 / (kg) 1500
• Weight: (lb) 0.06 / (g) 27

Dimensions:

• A: (inch) 1 21/32" / (mm) 42
• B: (inch) 1 / (mm) 25.5
• C: (inch) 15/64" / (mm) 6
• D: (inch) 35/64" / (mm) 14
• D diameter: (inch) 15/64" / (mm) 6
• E: (inch) 15/64" / (mm) 6
• F: (inch) 2 9/32" / (mm) 58
• G: (inch) 1 47/64" / (mm) 44

Caption:

• Working Load (WL): For nautical applications
•  Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load.
  WLL = Breaking load / 5

*Sold as an Individual

The Wichard Self-Locking Large Opening Shackle (part number 01263) is a specialized lifting component designed for industrial applications requiring secure and durable connections. Constructed from grade 316L stainless steel, this shackle offers resistance to corrosion and is suitable for environments demanding robust hardware. Its self-locking mechanism ensures the pin remains securely in position, mitigating loosening even when subjected to vibrations. With a 6mm (1/4") diameter, it provides a Working Load Limit (WLL) of 660 lb (300 kg) and a Breaking Load of 3300 lb (1500 kg). This shackle is intended for IT and operations professionals who need reliable, CE-marked lifting hardware for equipment, infrastructure, or other industrial uses where a large opening and secure locking are critical for operational safety and stability.
