01244 - Wichard Marine Wichard Self-Locking Bow Shackle - Diameter 8mm - 5/16"

Self-Locking Bow Shackle - Diameter 8mm - 5/16"

Features:

• Self-locking bow shackle forged in grade 316L stainless steel
• The pin is locked into one of the indentations
• No risks of loosening due to vibrations
• Outstanding working and breaking loads
• WLL: only for industrial applications (lifting i.e…)
• CE marking and batch number

Applications:

• To be used when ample room is required
• Possibility to attach several lines or cables

Specifications:

• Materials 316 stainless steel grade
• Working load (lb) 2200
• WLL (lb) 1190
• Breaking load (lb) 5950
• Weight (lb) 0.15

Dimensions (see 2nd image):

• A (inch) 1-29/64"
• B (inch) 5/8"
• C (inch) 5/16"
• D (inch) 5/8"
• D diameter (inch) 5/16"
• E (inch) 9/32"
• M (inch) 1-17/32"

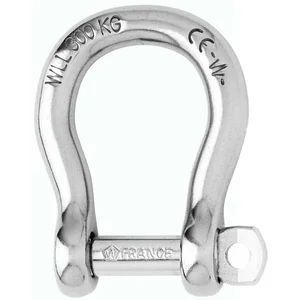

The Wichard Self-Locking Bow Shackle, part number 01244, is a forged component constructed from grade 316L stainless steel. This shackle is designed for industrial applications where secure, vibration-resistant connections are critical. Its self-locking pin mechanism prevents loosening, addressing a common issue in dynamic environments. With a working load of 2200 lb and a breaking load of 5950 lb, it is suitable for tasks requiring robust load-bearing capabilities. The bow design offers ample room, allowing for the attachment of multiple lines or cables. This shackle is intended for professionals in industrial settings who require reliable hardware for lifting or secure fastening, particularly where CE marking and batch traceability are necessary.
