01303 - Wichard Marine Wichard Self-Locking Allen Head Pin D Shackle - 6mm Diameter - 1/4"

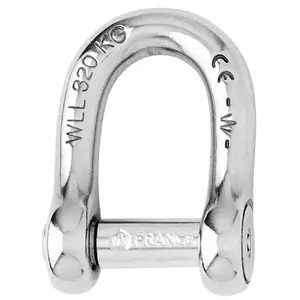

Self-Locking Allen Head Pin D Shackle - 6mm Diameter - 1/4"

Features:

• Self-locking shackle with allen head pin D forged in grade 316L stainless steel
• The pin is locked into one of the indentations
• The head of the pin does not stick out from the shackle body and thus eliminates any risk of snagging
• No risks of loosening due to vibrations
• Outstanding working and breaking loads
• WLL: only for industrial applications (lifting i.e…)
• CE marking

Applications:

• Ideal to link chains and anchor
• On the halyard, avoids damaging the sails
• To be used when the clutter is reduced

Specifications:

• Materials: 316 stainless steel grade
• Working load: (lb) 1320 / (kg) 600
• WLL: (lb) 700 / (kg) 320
• Breaking load: (lb) 3520 / (kg) 1600
• Weight: (lb) 0.049 / (g) 22

Dimensions:

• A: (inch) 3/4" / (mm) 19
• B: (inch) 15/32" / (mm) 12
• C: (inch) 15/64" / (mm) 6
• D: (inch) 15/32" / (mm) 12
• D diameter: (inch) 15/64" / (mm) 6

Caption:

• Working Load (WL): For nautical applications
• Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load.
  WLL = Breaking load / 5

*Sold as an Individual

The Wichard Self-Locking Allen Head Pin D Shackle (part number 01303) is a specialized lifting shackle designed for secure fastening in industrial and marine environments. Constructed from 316L stainless steel, it offers corrosion resistance suitable for demanding conditions. This shackle features a 6mm (1/4") diameter pin with a self-locking allen head mechanism, engineered to prevent loosening due to vibration and reduce snagging. With a Working Load Limit (WLL) of 700 lb (320 kg) and a Breaking Load of 3520 lb (1600 kg), it is intended for applications requiring a robust and reliable connection point. The CE mark indicates compliance with relevant safety standards. This component is suitable for IT hardware resellers supporting clients in sectors that require secure, durable, and compliant rigging or connection solutions, such as industrial facilities or data centers with specialized equipment handling needs. It addresses the need for a dependable shackle that maintains integrity under load and vibration.
