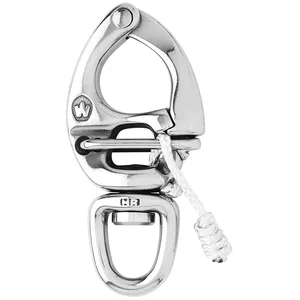

02677 - Wichard Marine Wichard HR Quick Release Snap Shackle With Swivel Eye - 130mm Length - 5-1/8"

HR Quick Release Snap Shackle With Swivel Eye - 130mm Length - 5-1/8"

Features:

• HR forged (17.4 PH) quick-release snap shackle with swivel eye
• The opening is made by pulling the lanyard
• Perfect to attach one sheet or halyard
• Outstanding working and breaking loads
• Free rotation of the snap shackle thanks to the swivel

Applications:

• For spinnaker operations
• Perfect for spinnaker sheets and halyards

Specifications:

• Materials: HR 17.4 PH stainless steel grade
• Working load: (lb) 7050 / (kg) 3200
• Breaking load: (lb) 13880 / (kg) 6300
• Weight: (lb) 0.818 / (g) 371

Dimensions:

• A: (inch) 1 3/16" / (mm) 30
• B: (inch) 25/32" / (mm) 20
• Length: (inch) 5 1/8" / (mm) 130

Caption:

• Working Load (WL): For nautical applications
• Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5
• High Resistance (HR)

*Sold as an Individual

The Wichard HR Quick Release Snap Shackle with Swivel Eye, part number 02677, is a specialized component designed for secure and rapid attachment in demanding applications. Constructed from HR 17.4 PH stainless steel, this forged snap shackle offers a working load of 7050 lb (3200 kg) and a breaking load of 13880 lb (6300 kg). Its quick-release mechanism, operated by pulling a lanyard, facilitates efficient disengagement. The integrated swivel eye allows for free rotation, which can prevent line twisting and reduce wear in dynamic setups. With a total length of 130mm (5-1/8"), this shackle is suitable for professionals requiring reliable, high-resistance fastening solutions where quick release and rotational freedom are critical. It is particularly applicable in scenarios involving spinnaker sheets and halyards.
