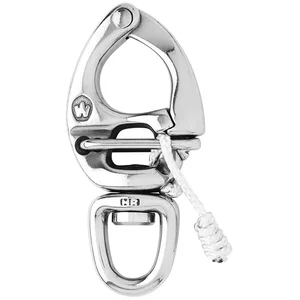

02678 - Wichard Marine Wichard HR Quick Release Snap Shackle With Swivel Eye -150mm Length- 5-29/32"

HR Quick Release Snap Shackle With Swivel Eye -150mm Length- 5-29/32"

Features:

• HR forged (17.4 PH) quick-release snap shackle with swivel eye
• The opening is made by pulling the lanyard
• Perfect to attach one sheet or halyard
• Outstanding working and breaking loads
• Free rotation of the snap shackle thanks to the swivel

Applications:

• For spinnaker operations
• Perfect for spinnaker sheets and halyards

Specifications:

• Materials: HR 17.4 PH stainless steel grade
• Working load: (lb) 11460 / (kg) 5200
• Breaking load: (lb) 19840 / (kg) 9000
• Weight: (lb) 1.208 / (g) 548

Dimensions:

• A: (inch) 1 11/32" / (mm) 34
• B: (inch) 15/16" / (mm) 24
• Length: (inch) 5 29/32" / (mm) 150

Caption:

• Working Load (WL): For nautical applications
• Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5
• High Resistance (HR)

*Sold as an Individual

The Wichard HR Quick Release Snap Shackle with Swivel Eye (part number 02678) is a specialized component designed for demanding nautical applications, particularly spinnaker operations. Constructed from HR forged 17.4 PH stainless steel, this shackle offers a combination of durability and high load capacity. Its swivel eye design facilitates free rotation, which is beneficial for managing lines and preventing twists in dynamic environments. The quick-release mechanism, activated by a lanyard, allows for efficient attachment and detachment. With a working load limit of 11,460 lbs (5,200 kg) and a breaking load of 19,840 lbs (9,000 kg), it provides robust performance for critical connections. This shackle is suitable for IT buyers managing equipment or infrastructure requiring secure, high-strength, and rapidly releasable fastening solutions in marine or similar harsh conditions, such as securing heavy-duty cables or temporary structures.
