02675 - Wichard Marine Wichard HR Quick Release Snap Shackle With Swivel Eye - 90mm Length - 3-35/64"

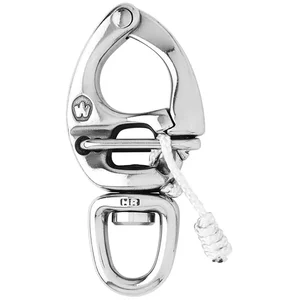

HR Quick Release Snap Shackle With Swivel Eye - 90mm Length - 3-35/64"

Features:

• HR forged (17.4 PH) quick-release snap shackle with swivel eye
• The opening is made by pulling the lanyard
• Perfect to attach one sheet or halyard
• Outstanding working and breaking loads
• Free rotation of the snap shackle thanks to the swivel

Applications:

• For spinnaker operations
• Perfect for spinnaker sheets and halyards

Specifications:

• Materials: HR 17.4 PH stainless steel grade
• Working load: (lb) 3520 / (kg) 1600
• Breaking load: (lb) 7050 / (kg) 3200

Dimensions:

• A: (inch) 25/32" / (mm) 20
• B: (inch) 17/32" / (mm) 13.5
• Length: (inch) 3 35/64" / (mm) 90

Caption:

• Working Load (WL): For nautical applications
• Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5
• High Resistance (HR)

*Sold as an Individual

The Wichard HR Quick Release Snap Shackle with Swivel Eye (part number 02675) is a specialized connecting component designed for demanding nautical environments. Constructed from HR forged stainless steel (17.4 PH), this 90mm shackle offers both high working and breaking loads, ensuring reliability in critical applications. Its primary function is to provide secure yet rapidly releasable connections. The integrated swivel eye allows for 360-degree rotation, preventing line twists and ensuring smooth operation, particularly under dynamic loads. The quick-release mechanism, activated by pulling a lanyard, facilitates efficient disengagement. This product is suitable for IT buyers procuring specialized hardware for marine-related projects or facilities requiring robust, high-strength, and quickly adjustable fastening solutions, such as those found in spinnaker sheeting and halyard systems where rapid deployment or release is essential.
