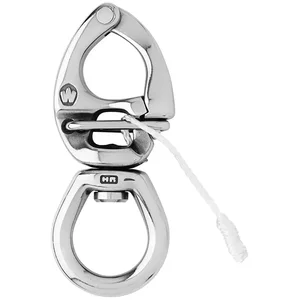

02777 - Wichard Marine Wichard HR Quick Release Snap Shackle - 145mm Length

HR Quick Release Snap Shackle - 145mm Length

Overview: This quick release snap shackle is designed for ease of use and maximum strength, making it ideal for various nautical applications.

Key Features:

• HR forged (17.4 PH) stainless steel for durability
• Easy opening by simply pulling the lanyard
• Versatile design suitable for attaching multiple lines
• Exceptional working and breaking loads
• Free rotation capability due to integrated swivel

Applications:

• Ideal for spinnaker operations
• Perfect for attaching several lines such as spinnaker sheets

Specifications:

• Working load: 6170 lb (2800 kg)
• Breaking load: 13880 lb (6300 kg)
• Weight: 0.873 lb (396 g)

Dimensions:

• A: 1 3/16" (30 mm)
• B: 1 25/64" (35.5 mm)
• Length: 5 45/64" (145 mm)

Important Notes:

• Working Load Limit (WLL) based on a safety factor of 5 times the breaking load
• High Resistance (HR) construction

*Sold as an Individual

The Wichard HR Quick Release Snap Shackle, part number 02777, is a specialized hardware component designed for secure and efficient line management in demanding applications. Constructed from HR forged 17.4 PH stainless steel, this 145mm length shackle offers high resistance and durability. It features a quick-release mechanism, activated by pulling a lanyard, facilitating rapid detachment. An integrated swivel allows for free rotation, preventing line twisting and ensuring smooth operation. With a working load of 6170 lb (2800 kg) and a breaking load of 13880 lb (6300 kg), it is engineered for substantial loads. This shackle is suitable for professionals requiring reliable attachment points for multiple lines, such as in spinnaker operations, where quick adjustments and secure connections are critical for operational efficiency and safety.
