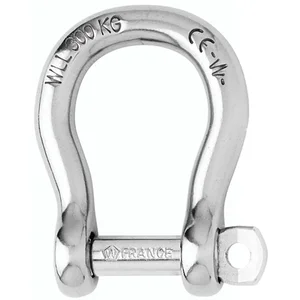

01248 - Wichard Marine Wichard Not Self-Locking Bow Shackle - 20mm Diameter - 25/32"

Not Self-Locking Bow Shackle - 20mm Diameter - 25/32"

Features:

• Bow shackle forged in grade 316L stainless steel
• The pin is locked into one of the indentations
• No risks of loosening due to vibrations
• Outstanding working and breaking loads
• WLL: only for industrial applications (lifting i.e…)
• CE marking
• Part # 01248 is not self-locking

Applications:

• To be used when ample room is required
• Possibility to attach several lines or cables

Specifications:

• Materials: 316 stainless steel grade
• Working load: (lb) 9920 / (kg) 4500
• WLL: (lb) 6610 / (kg) 3000
• Breaking load: (lb) 33060 / (kg) 15000
• Weight: (lb) 2.328 / (kg) 1.056

Dimensions:

• A: (inch) 3 5/32" / (mm) 80
• B: (inch) 1 37/64" / (mm) 40
• C: (inch) 25/32" / (mm) 20
• D: (inch) 1 37/64" / (mm) 40
• D diameter: (inch) 25/32" / (mm) 20
• E: (inch) 45/64" / (mm) 18
• M: (inch) 3 15/16" / (mm) 100

Caption:

• Working Load (WL): For nautical applications
• Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load.
  WLL = Breaking load / 5

*Sold as an Individual

The Wichard Not Self-Locking Bow Shackle, part number 01248, is a lifting shackle designed for industrial applications requiring secure connections. Forged from grade 316L stainless steel, this component offers durability and resistance to corrosion, making it suitable for demanding environments. Its non-self-locking design incorporates a pin that securely locks into an indentation, mitigating the risk of loosening due to vibrations during operation. This feature is critical for maintaining stability in lifting tasks. With a 20mm (25/32") diameter, the shackle provides ample space for connecting multiple lines or cables. It supports a working load limit (WLL) of 6610 lb (3000 kg) and a breaking load of 33060 lb (15000 kg), addressing various lifting requirements. This shackle is intended for IT and industrial buyers who need reliable hardware for rigging, material handling, or other secure attachment points where vibration resistance is a key concern.
