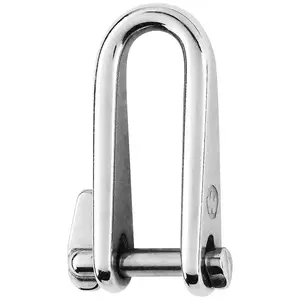

01434 - Wichard Marine Wichard Key Pin Shackle - Diameter 8mm - 5/16"

Key Pin Shackle - Diameter 8mm - 5/16"

Features:

• Key pin shackle forged in grade 316L stainless steel
• Opening and closing is done simply by rotating the pin half a turn
• No risk to lose the pin as it remains attached
• Outstanding working and breaking loads

Applications:

• Perfect product for halyards or applications requiring to open /close the shackle often

Specifications:

• Materials 316 stainless steel grade
• Working load (lb) 1760
• Breaking load (lb) 5070
• Weight (lb) 0.267

Dimensions (see 2nd image):

• A (inch) 2-21/64"
• B (inch) 53/64"
• C (inch) 5/16"
• D (inch) 43/64"
• D diameter (inch) 5/16"
• E (inch) 15/64"
• F (inch) 3-7/64"
• G (inch) 1-59/64"

The Wichard Key Pin Shackle, part number 01434, is a specialized fastening component designed for applications requiring frequent opening and closing. Constructed from grade 316L stainless steel, this shackle offers resistance to corrosion and maintains structural integrity in demanding environments. Its key pin design allows for secure closure and easy operation; the pin rotates a half turn to open or close and remains attached to the shackle body, mitigating the risk of loss. This product is suitable for IT hardware setups or industrial applications where reliable, quick-release fastening is necessary, such as securing equipment covers, cable management systems, or temporary fixtures. It provides a working load limit of 1760 lbs and a breaking load of 5070 lbs, indicating its capacity for substantial loads. The shackle's 8mm (5/16") diameter is a key specification for compatibility.
