01433 - Wichard Marine Wichard Key Pin Shackle - Diameter 6mm - 1/4"

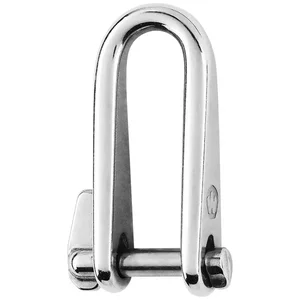

Key Pin Shackle - Diameter 6mm - 1/4"

Features:

• Key pin shackle forged in grade 316L stainless steel
• Opening and closing is done simply by rotating the pin half a turn
• No risk to lose the pin as it remains attached
• Outstanding working and breaking loads

Applications:

• Perfect product for halyards or applications requiring to open/close the shackle often

Specifications:

• Materials 316 stainless steel grade
• Working load (lb) 1140
• Breaking load (lb) 3300
• Weight (lb) 0.106

Dimensions (see 2nd image):

• A (inch) 1-49/64"
• B (inch) 5/8"
• C (inch) 15/64"
• D (inch) 33/64"
• D diameter (inch) 15/64"
• E (inch) 5/32"
• F (inch) 2-23/64"
• G (inch) 1-29/64"

The Wichard Key Pin Shackle, part number 01433, is a forged shackle designed for applications requiring frequent opening and closing. Constructed from grade 316L stainless steel, it offers a working load of 1140 lb and a breaking load of 3300 lb. Its key pin mechanism allows for opening and closing by rotating the pin half a turn, with the pin remaining attached to prevent loss. This design addresses the need for secure, repeatable connections in environments where components are regularly adjusted or reconfigured. It is suitable for use in systems such as halyards, where reliability and ease of operation are critical. The shackle's material composition provides resistance in demanding conditions, making it a practical choice for IT infrastructure or industrial settings that utilize similar rigging or securing mechanisms.
