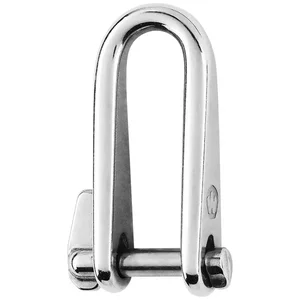

01432 - Wichard Marine Wichard Key Pin Shackle - Diameter 5mm - 3/16"

Key Pin Shackle - Diameter 5mm - 3/16"

Features:

• Key pin shackle forged in grade 316L stainless steel
• Opening and closing is done simply by rotating the pin half a turn
• No risk to lose the pin as it remains attached
• Outstanding working and breaking loads

Applications:

• Perfect product for halyards or applications requiring to open/close the shackle often

Specifications:

• Materials 316 stainless steel grade
• Working load (lb) 880
• Breaking load (lb) 2200
• Weight (lb) 0.068

Dimensions (see 2nd image):

• A (inch) 1-29/64"
• B (inch) 33/64"
• C (inch) 13/64"
• D (inch) 7/16"
• D diameter (inch) 13/64"
• E (inch) 5/32"
• F (inch) 1-59/64"
• G (inch) 1-7/32"

The Wichard Key Pin Shackle, part number 01432, is a fastening component designed for applications requiring frequent attachment and detachment. Forged from grade 316L stainless steel, this shackle offers corrosion resistance and durability for demanding environments. Its key pin design allows for opening and closing by rotating the pin a half turn, with the pin remaining attached to prevent loss during operation. This feature makes it suitable for scenarios where quick and secure connections are necessary.

With a working load of 880 lbs and a breaking load of 2200 lbs, this shackle provides reliable performance for its size. It is particularly useful for tasks such as managing halyards or other rigging where repeated access is required. The 5mm (3/16") diameter indicates its intended use with corresponding hardware. This product is for buyers who need a robust, reusable, and secure connection point that can be operated efficiently without the risk of losing critical components.
