91432 - Wichard Marine Wichard High Resistance Stainless Steel Shackle - 5mm Pin

4 Available
Condition: New

$56.59  $76.40
Need 10+? Request a volume quote
 Free Shipping for this Item

Product Overview

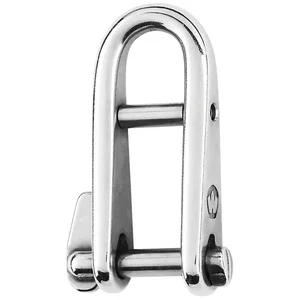

HR Key Pin Shackle With Bar - 5mm Pin Diameter

Features:

  • Forged D shackle in HR stainless steel grade (17,4 PH)
  • Outstanding working and breaking load
  • An HR shackle can be up to 60% more resistant than a shackle in 316L stainless steel
  • WLL: only for industrial applications (lifting i.e…)
  • CE marking

Applications:

  • Applications requesting high loads
  • Perfect product for halyards or applications requiring opening/closing the shackle often
  • Do not use it for mooring applications

Specifications:

  • Materials: HR 17.4 PH stainless steel grade
  • Working load: (lb) 1050 / (kg) 480
  • Breaking load: (lb) 3300 / (kg) 1500
  • Weight: (lb) 0.068 / (g) 31

Dimensions:

  • A: (inch) 1 29/64" / (mm) 37
  • B: (inch) 33/64" / (mm) 13
  • C: (inch) 13/64" / (mm) 5
  • D: (inch) 7/16" / (mm) 11
  • E: (inch) 5/32" / (mm) 4
  • F: (inch) 1 59/64" / (mm) 49
  • G: (inch) 1 7/32" / (mm) 31
  • L: (inch) 15/32" / (mm) 12

Caption:

  • Working Load (WL): For nautical applications
  • Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5
  • High Resistance (HR)

*Sold as an Individual


Expert Overview

The Wichard High Resistance Stainless Steel Shackle with a 5mm pin (part number 91432) is engineered for demanding industrial environments requiring robust load capacity and frequent operation. Constructed from forged HR stainless steel (grade 17-4 PH), this shackle offers significantly enhanced durability and resistance compared to standard 316L stainless steel alternatives, providing up to 60% greater resistance. It is specifically designed for heavy-duty applications where high loads are common and the shackle may need to be opened and closed regularly. This product is suitable for various industrial uses, ensuring reliable performance within its specified working load limit. It is not intended for mooring applications. The shackle is CE marked, indicating compliance with relevant safety standards for industrial use.

Technical Specifications

Features:<\/strong><\/p>

  • Made from forged HR stainless steel grade (17-4 PH) for enhanced durability.
  • Outstanding working load and breaking load capacities.
  • Up to 60% more resistant than traditional 316L stainless steel shackles.
  • Working Load Limit (WLL) is intended only for industrial applications.
  • CE marked for compliance with safety standards.
    • <\/ul>

Product Details

  • Manufacturer:
  • Model Number:
  • ASIN:
  • UPC:
  • Condition:
  • Weight:
  • Dimensions:
  • Updated:
  • Added:
  • Wichard Marine
  • 91432
  • B0CWYWLC45
  • 768536028522
  • New
  • 0.1 lbs
  • 6 X 1 X 2
  • Sep 13, 2026
  • Sep 17, 2024
Product Identifiers: Brand: Wichard Marine • Part #: 91432 • UPC: 768536028522 • ASIN: B0CWYWLC45 • Category: Lifting Shackles

Frequently Asked Questions

What material is the shackle made from?

The shackle is made from forged HR (High Resistance) stainless steel, specifically grade 17-4 PH. This material provides enhanced durability and resistance compared to traditional 316L stainless steel.

What is the pin diameter of this shackle?

This shackle features a 5mm pin diameter, designed for secure connections in industrial applications.

What are the primary use cases for this shackle?

This shackle is ideal for heavy-duty industrial applications that require high load capacity and frequent opening and closing. It is suitable for various high-load industrial uses but is not intended for mooring.

Is this shackle suitable for marine mooring applications?

No, the product description explicitly states that this shackle is not intended for mooring applications. Its Working Load Limit (WLL) is specified only for industrial uses.
