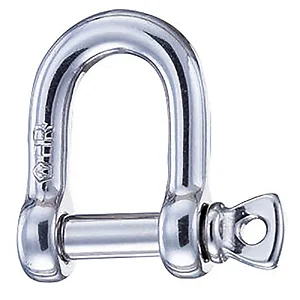

High Resistance D Shackle - 20mm Diameter
Overview:
This forged D shackle is made from high resistance stainless steel (HR 17-4 PH), providing exceptional durability and strength for heavy-duty applications.
Features:
- Manufactured from high resistance (HR) stainless steel grade (17-4 PH)
- Offers outstanding working load limits and breaking loads
- Up to 60% more resistant than standard 316L stainless steel shackles
- Working Load Limit (WLL) designated for industrial applications only
- Complies with CE marking standards
Applications:
- Ideal for high load applications
- Standard usage in various shackle applications
- Suitable for attachments including blocks and heads
- Not recommended for mooring
Specifications:
- Material: HR 17-4 PH stainless steel
- Working load: 19400 lb (8800 kg)
- WLL: 12340 lb (5600 kg)
- Breaking load: 61720 lb (28000 kg)
- Weight: 1.896 lb (860 g)
Dimensions:
- A: 2 3/4" (70 mm)
- B: 1 37/64" (40 mm)
- D Diameter: 25/32" (20 mm)
Notes:
- Working Load (WL) indicates suitability for nautical applications
- Working Load Limit (WLL) applies strictly to industrial uses; safety factor is 5 times the breaking load
- Features high resistance (HR) for enhanced performance
*Sold individually.
