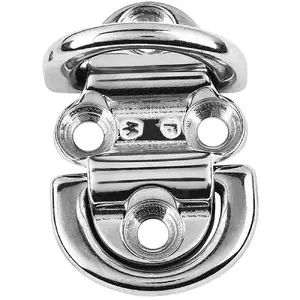

06566 - Wichard Marine Wichard Double Folding Pad Eye - 10mm Diameter - 25/64"

Double Folding Pad Eye - 10mm Diameter - 25/64"

Features:

• Fully drop forged product with outstanding working and breaking loads regardless of the angle of the load
• Perfect solution attachment (stay, blocks, jib tack point)
• Possibility to attach several stays
• Modern and optimized design to suit the aesthetics of modern boats
• They can be folded down to minimize the risk of injuries
• The silicon pad eliminates noise and unpleasant vibrations

Applications:

• For any fastening/attachment application
• Allows to attach several shrouds

Specifications:

• Materials: 316L stainless steel grade
• Working load: (lb) 10050 / (kg) 4560
• Breaking load: (lb) 19840 / (kg) 9000
• Weight: (lb) 1.089 / (g) 494

Dimensions:

• A: (inch) 2 61/64" / (mm) 75
• B: (inch) 1 49/64" / (mm) 45
• C: (inch) 29/32" / (mm) 23
• d diameter: (inch) 13/32" / (mm) 10.5
• D diameter: (inch) 25/64" / (mm) 10
• E: (inch) 4 3/32" / (mm) 104
• F: (inch) 3 5/64" / (mm) 78

Caption:

• Working Load (WL): For nautical applications
• Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5

*Sold as an Individual

The Wichard Double Folding Pad Eye, part number 06566, is a robust fastening component designed for marine applications. Constructed from 316L stainless steel and featuring a fully drop forged build, it offers corrosion resistance and durability suitable for demanding environments. This pad eye is engineered to provide secure attachment points for shrouds, stays, and other fastening needs on marine vessels. Its double folding design allows it to lay flat when not in use, reducing potential snag hazards and improving safety on deck. A silicon pad is integrated to mitigate noise and vibrations during operation. With a working load limit of 10050 lb (4560 kg) and a breaking load of 19840 lb (9000 kg), this component is intended for IT hardware resellers supporting clients in the marine sector requiring reliable, high-strength fastening solutions.
