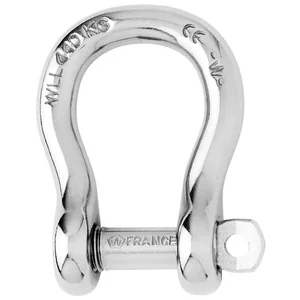

01444 - Wichard Marine Wichard Captive Pin Bow Shackle - Diameter 8mm - 5/16"

Captive Pin Bow Shackle - Diameter 8mm - 5/16"

Features:

• Captive pin bow shackle forged in grade 316L stainless steel
• The pin is connected to the body at all times even when opened
• The pin is locked into one of the indentations
• No risks of loosening due to vibrations
• Outstanding working and breaking loads
• Single handed operation for more safety
• WLL: only for industrial applications (lifting i.e…)
• CE marking and batch number

Applications:

• To be used when ample room is required
• Possibility to attach several lines or cables

Specifications:

• Materials 316 stainless steel grade
• Working load (lb) 2200
• WLL (lb) 1630
• Breaking load (lb) 8150
• Weight (lb) 0.165

Dimensions (see 2nd image):

• A (inch) 1-29/64"
• B (inch) 5/8"
• C (inch) 23/64"
• D (inch) 45/64"
• D diameter (inch) 5/16"
• E (inch) 5/16"
• M (inch) 1-21/32"

The Wichard Captive Pin Bow Shackle (part number 01444) is a specialized fastening component designed for industrial applications requiring secure, vibration-resistant connections. Forged from grade 316L stainless steel, this shackle features a captive pin mechanism, ensuring the pin remains attached to the body even when open. This design mitigates the risk of loosening due to vibrations, enhancing operational safety and reliability in demanding environments. It is suitable for scenarios where ample room is available and multiple lines or cables need to be attached. With a Working Load Limit (WLL) of 1630 lb and a breaking load of 8150 lb, it is specifically rated for industrial lifting and similar heavy-duty tasks. The shackle's single-handed operation feature further contributes to user convenience and safety during installation and removal.
