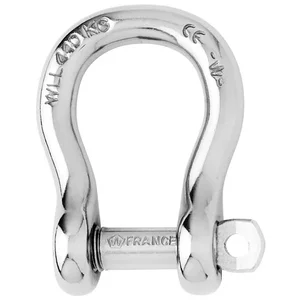

01441 - Wichard Marine Wichard Captive Pin Bow Shackle - Diameter 4mm - 5/32"

Captive Pin Bow Shackle - Diameter 4mm - 5/32"

Features:

• Captive pin bow shackle forged in grade 316L stainless steel
• The pin is connected to the body at all times even when opened
• The pin is locked into one of the indentations
• No risks of loosening due to vibrations
• Outstanding working and breaking loads
• Single-handed operation for more safety
• WLL: only for industrial applications (lifting i.e…)
• CE marking and batch number

Applications:

• To be used when ample room is required
• Possibility to attach several lines or cables

Specifications:

• Materials 316 stainless steel grade
• Working load (lb) 700
• WLL (lb) 440
• Breaking load (lb) 2200
• Weight (lb) 0.022

Dimensions (see 2nd image):

• A (inch) 45/64"
• B (inch) 5/16"
• C (inch) 13/64"
• D (inch) 23/64"
• D diameter (inch) 5/32"
• E (inch) 5/32"
• M (inch) 53/64"

The Wichard Captive Pin Bow Shackle, part number 01441, is a grade 316L stainless steel component designed for secure attachment in industrial applications. This shackle features a captive pin that remains connected to the body even when open, mitigating the risk of loss. The pin locks into indentations to prevent loosening from vibrations, enhancing operational reliability. It offers a working load limit (WLL) of 440 lbs and a breaking load of 2200 lbs, suitable for various load-bearing tasks. Its design allows for single-handed operation, which can improve safety in dynamic environments. This shackle is intended for scenarios requiring ample room for connections, facilitating the attachment of multiple lines or cables. It is marked with CE certification and a batch number, indicating its suitability for industrial lifting applications where traceability is required.
