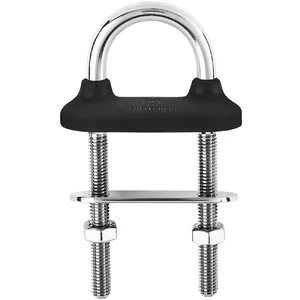

65461 - Wichard Marine Wichard Black Watertight U-Bolt - 12mm Diameter - 15/32" - 130mm Length - 5-1/8"

Black Watertight U-Bolt - 12mm Diameter - 15/32" - 130mm Length - 5-1/8"

Features:

• Fully drop-forged product with high-quality stainless steel
• Outstanding working and breaking loads
• Complete water-tightness thanks to the resistant rubber collar (black color)
• Easy installation (no need to use a waterproof sealant)
• Delivered with bolts and counter-plate
• Max tightening torque: 60 nm

Applications:

• Various fastening applications: shrouds, lifelines, blocks…

Specifications:

• Materials: 316L stainless steel grade
• Color: Black
• Working load: (lb) 14100 / (kg) 6400
• Breaking load: (lb) 22040 / (kg) 10000
• Weight: (lb) 0.827 / (g) 375

Dimensions:

• Length: (inch) 5 1/8" / (mm) 130
• A: (inch) 1 47/64" / (mm) 44
• B: (inch) 1 1/16" / (mm) 27
• C: (inch) 2 3/4" / (mm) 70
• D diameter: (inch) 15/32" / (mm) 12

Caption:

• Working Load (WL): For nautical applications
• Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5

*Sold as an Individual

The Wichard Black Watertight U-Bolt (part number 65461) is a fastening component designed for applications requiring high strength and a watertight seal. Constructed from 316L stainless steel with a fully drop-forged design, it offers durability and corrosion resistance suitable for demanding environments. This U-bolt is engineered with a black rubber collar to ensure complete watertightness upon installation, eliminating the need for additional sealants. It is supplied with bolts and a counter-plate for direct setup. With a working load of 14,100 lb (6,400 kg) and a breaking load of 22,040 lb (10,000 kg), it is intended for securing shrouds, lifelines, and blocks in marine and industrial settings where reliable, robust, and watertight fastening is critical.
