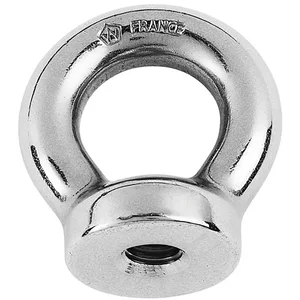

06333 - Wichard Marine Wichard 6mm Eye Nut - Forged Stainless Steel

6mm Eye Nut - 1/2" Diameter

Features:

• A complete range of single-piece forged products for fastenings applications
• Outstanding breaking loads
• Available in different sizes

Applications:

• Various fastening applications
• Towing application
• Waterskiing lines attachment

Specifications:

• Materials: 316L stainless steel grade
• Breaking load: (lb) 3300 / (kg) 1500
• Weight: (lb) 0.049 / (g) 22

Dimensions:

• A: (inch) M6 x 100 / (mm) M6 x 100
• B: (inch) 33/64" / (mm) 13
• C: (inch) 1 1/16" / (mm) 27
• D: (inch) 15/64" / (mm) 6
• E: (inch) 43/64" / (mm) 17

Caption:

• Working Load (WL): For nautical applications
• Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5

*Sold as an Individual

The Wichard 6mm Eye Nut (part number 06333) is a forged stainless steel fastening component designed for secure attachment in both nautical and industrial environments. Constructed from 316L stainless steel, it offers corrosion resistance and durability for demanding applications. This eye nut is suitable for general fastening and securing tasks, as well as more specific uses such as marine towing and waterskiing line attachments. With a breaking load of 3300 lb (1500 kg), it provides a robust connection point. For industrial applications, a working load limit (WLL) is calculated using a safety factor of 5 times the breaking load. Its lightweight design, at 0.049 lb (22 g), minimizes added mass while providing a reliable anchor.
