35500 - Wichard Marine Wichard 18mm Snatch Block with Snap Shackle

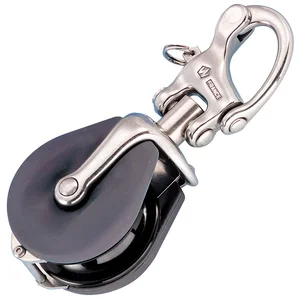

Wichard 18mm Snatch Block with Snap Shackle

Overview:

This snatch block is designed for maximum performance with a rope size of 18mm (23/32"). Its innovative snap shackle allows for free rotation, enhancing usability in various applications, from changing sheets to spinnaker sheet deflection.

Features:

• Free rotation provided by the snap shackle mechanism.
• Robust closing system for reliable use.
• Effortless opening by pulling the plunger pin.
• Durable elastomer molded cheeks protect against shock and scratches.

Applications:

• Ideal for changing sheets.
• Effective as spinnaker sheet deflector blocks.

Materials Used:

• Forged HR 17.4 PH stainless steel arm.
• Elastomer molded cheeks for added protection.
• Composite sheave for enhanced performance.

Product Specifications:

• Rope size: 18mm (23/32").
• Length: 155mm (6 7/64").
• Width: 59mm (2 21/64").
• Thickness: 49mm (1 59/64").
• Working Load: 1200kg (2640lb).
• Breaking Load: 2500kg (5510lb).
• Weight: 414g (0.913lb).

Important Notes:

• Working Load (WL) is applicable for nautical uses.
• Working Load Limit (WLL) for industrial use is calculated as Breaking Load / 5.

*Sold as an Individual unit.

The Wichard 18mm Snatch Block with Snap Shackle, part number 35500, is a specialized component designed for managing rope systems. This snatch block is engineered for use with 18mm (23/32") ropes, providing a working load capacity of 1200kg for nautical applications. Its primary features include a snap shackle mechanism that permits free rotation, facilitating quick adjustments in dynamic environments. The robust closing system and plunger pin opening mechanism ensure secure yet accessible operation. Constructed with a forged HR 17.4 PH stainless steel arm, composite sheave, and elastomer molded cheeks, it offers durability and protection against impacts. This product is suited for IT or industrial buyers managing specific rigging, lifting, or tensioning applications where precise rope deflection and quick deployment are critical, such as changing sheets or spinnaker sheet deflection in relevant operational contexts.
