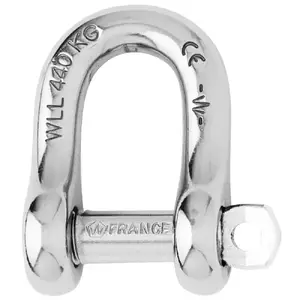

Wichard 10mm Captive Pin D Shackle

This captive pin "D" shackle is forged from grade 316L stainless steel, ensuring durability and resistance to corrosion. The unique design keeps the pin attached to the body at all times, preventing loss and enhancing safety.

Key Applications:

• Ideal for standard shackle applications.
• Suitable for attachment tasks such as blocks and rigging.

Specifications:

• Working Load: 3350 lb
• WLL: 2290 lb
• Breaking Load: 11460 lb
• Weight: 0.251 lb

Dimensions:

• A: 1-19/64 inch
• B: 25/32 inch
• C: 7/16 inch
• D: 53/64 inch
• D Diameter: 25/64 inch
• E: 23/64 inch
• F: 2-9/32 inch
• G: 2-3/32 inch

The Wichard 10mm Captive Pin D Shackle, part number 01405, is a stainless steel fastening component designed for secure attachment in various applications. Forged from grade 316L stainless steel, this shackle offers durability and resistance to corrosion, making it suitable for environments where these factors are critical. Its captive pin design ensures the pin remains attached to the shackle body at all times, mitigating the risk of loss during operation or maintenance. The pin also locks securely with indentations, which helps to minimize loosening due to vibrations. This product is intended for standard shackle applications, including the attachment of blocks and rigging, where reliable connection and load-bearing capabilities are required. It addresses the need for a robust and secure shackle that can withstand working loads up to 3350 lb and breaking loads up to 11460 lb.
