TDE14-250FIM-25 - Pacer Group Pacer Blue Heat-Shrink Male Disconnect Terminals - 25 Pack

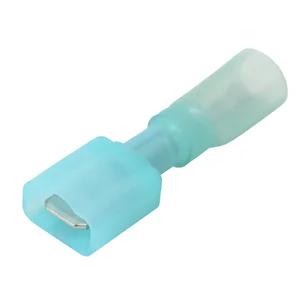

Pacer Blue Heat-Shrink Male Disconnect Terminals - 25 Pack

Creating reliable connections is vital in any electrical system. The Pacer heat-shrink fully insulated male disconnect terminals offer a convenient solution for easy maintenance. These terminals are designed to withstand harsh environments, providing superior moisture protection through their innovative heat-activated adhesive liner. This built-in feature ensures a secure, environmentally sealed connection for wire gauges from 22 AWG to 10 AWG.

With these terminals, users do not need to worry about exposure to water, oil, gas, or other corrosive materials. They are also resilient against physical damage and abrasion. The disconnect functionality allows for quick and easy separation of connections when maintenance is required, making it effortless to remove equipment or perform field service. The insulation color clearly indicates the corresponding wire gauge: Red for 22-18 AWG, Blue for 16-14 AWG, and Yellow for 12-10 AWG. If you're unsure about which terminal to choose, consult a Pacer expert for assistance.

Features:

• Superior protection from water, condensation, salt spray, and corrosion
• Enhanced vibration resistance for rugged conditions
• Built-in strain relief for secure connections

Characteristics:

• Shrink Ratio: Approx. 3:1 at 135 °C
• Operating Temperature: -55 °C to 125 °C
• Volume Resistivity: 10¹⁵ Ohm-cm³
• Dielectric Strength: 900-V/mil
• Voltage Rating: 600-V

Specifications:

• AWG: 16-14
• Disconnect/Bullet Size: 0.250 in.
• Insulation Color: Blue
• Package Size: 25

Compliances:

• UL
• CSA
• RoHS

The Pacer Blue Heat-Shrink Male Disconnect Terminals, part number TDE14-250FIM-25, are designed for creating reliable and maintainable electrical connections in demanding environments. These fully insulated male disconnect terminals are suitable for IT and industrial buyers who require robust connectivity solutions that can withstand exposure to water, oil, gas, and other corrosive materials. The heat-activated adhesive liner provides superior moisture protection, creating an environmentally sealed connection. With a 0.250-inch disconnect size, these terminals accommodate 16-14 AWG wire gauges, indicated by their blue insulation. They offer enhanced vibration resistance and built-in strain relief, contributing to connection longevity in rugged conditions. The disconnect functionality facilitates quick separation for equipment removal or field service, streamlining maintenance operations. These terminals are compliant with UL, CSA, and RoHS standards, ensuring suitability for various professional applications.
